تفاصيل المنتج:
|
| نطاق اختبار الصلابة: | 8 ~ 2900HV/HK ، | طريقة اختبار تطبيق القوة: | تلقائي (التحميل ، الاحتفاظ ، التفريغ) |
|---|---|---|---|
| اختبار التكبير بالمجهر: | 400x ، 100x ، 800x ، 2.5 ملم هدف المسافة اختيارية | وقت الاحتفاظ بقوة الاختبار: | 1-99 ثانية |
| الحد الأقصى المسموح به لارتفاع العينة: | 100 ملم | المسافة من السندات إلى جدار الآلة: | 130 ملم |
| إبراز: | Automatic Digital Micro Vickers Hardness Tester,Knoop Hardness Tester HV-1MDT-4,Non Destructive Testing Equipment Micro Vickers,Knoop Hardness Tester HV-1MDT-4,Non Destructive Testing Equipment Micro Vickers |
||
| Attribute | Value |
|---|---|
| Hardness test range | 8~2900HV/HK |
| Test method of force application | Automatic (loading, retaining, unloading) |
| Test microscope magnification | 400X, 100X, 800X, 2.5mm distance objective is optional |
| Test force retention time | 1-99s |
| Maximum allowable specimen height | 100mm |
| Distance from indenter to machine wall | 130mm |

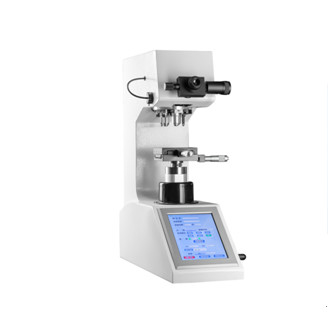

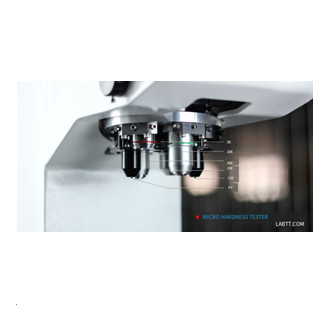

The HV-1MDT-4 automatic turret digital microhardness tester is equipped with Vickers and Knoop indenters along with 3 types of objective lenses, enabling simultaneous measurement of both Vickers and Knoop hardness values.
Featuring an optical cross guide lifting mechanism, precise force values, and clear imaging, this tester represents an ideal high-end microhardness testing solution.
| Model number | HV-1MDT-4 |
| Test Force | 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1Kgf (9.8N) |
| Meet the standard | GB/T4340.2, GB/T 18449.2 ASTM E92 |
| Measurement resolution | 0.01 (including m) |
| Data display output | 8 inch touch screen displays readings, can store 20 kinds of test results, built-in printer and RS-232 interface, optional USB flash drive |
| Conversion scale | Lowe's, Brinell |
| X-Y test bench | Size: 110*110mm Maximum movement: 25*25mm |
| Dimensions | 540*260*650mm |
| Weight | About 50Kg |
| Power supply | AC220V ±5%, 50-60Hz |
| Name | Quantity | Name | Quantity |
|---|---|---|---|
| Shaft of weight | 1 | Micrometer eyepieces (DHV-1000-10X) | 1 |
| XY test bench | 1 | Microhardness block (high block, medium block) | 1 block each |
| Spirit level | 1 | Universal footing | 1 |
| Power cord | 1 | Spare fuse (2A) | 1 |
| Product certificate, warranty card | 1 copy | Dust cover | 1 |
| Printer paper | 1 serving | Screw lot | 2 sets |
| Fine wire holder table | Flat mouth gripper table |
| Wafer holder table | Vickers measurement software |
