تفاصيل المنتج:
|
| نطاق قياس السماكة: | 1.5 ~ 200.0 ملم | دقة: | 0.02 ملم |
|---|---|---|---|
| سرعة الزحف: | 6M/دقيقة | قدرة الإدخال المقدرة: | 60 واط |
| عرض المسار: | 40 ملم | ||
| إبراز: | magnetic wall climbing robot,curved surface thickness measurement robot,non-destructive inspection robot with warranty,curved surface thickness measurement robot,non-destructive inspection robot with warranty |
||

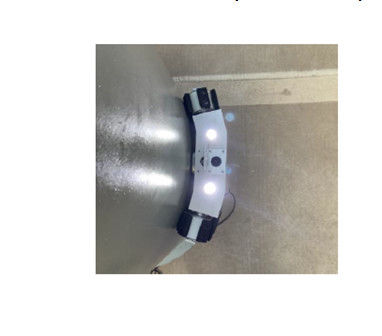

TG-M69 Curved Surface Crawler Wall Climbing Thickness Measurement Robot Magnetic Adsorption Inspection Robot
The tracked wall climbing detection robot is an intelligent device used for detecting the thickness and damage of industrial facilities' surfaces (curved surfaces). The product can be adsorbed on the wall surface through magnetic suction tracks, and has both ground movement and adsorption capabilities. It can replace inspectors for high-altitude extreme operations. The equipment size is only 288 * 278 * 70mm, which can more intelligently and flexibly adapt to various complex industrial environments.

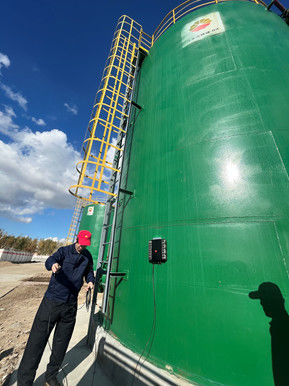

The equipment is mainly used in industries such as electric power generation, petrochemical, aerospace, shipbuilding, and bridges. It can timely detect the corrosion, wear, and other damage of tested furnace tubes, high-altitude pipelines, storage tanks, and other structures, avoid potential safety accidents, and provide effective safety decision-making support for maintenance personnel to establish more reasonable facility maintenance plans.
Product parameters
| Detectable workpiece material | Conductor materials such as carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum, titanium, etc |
| Resolution | 0.02mm |
| Thickness measuring range | 1.5 ~ 200.0mm |
| Detection mode | Manual/automatic detection |
| Measurement equipment error range | When the thickness of the workpiece is ≤ 10mm, the error is ± 0.05mm; When the thickness is>10mm, the error is ± (0.01+H/200) mm (H is the workpiece thickness value) |
| 3D pose information | Roll angle, pitch angle, yaw angle |
| Attitude detection accuracy | 0.1RMS |
| Communication distance | 80m (no obstruction) |
| video information | 500W pixels (MJPG) |
| Torque | 56 Kgf.cm |
| Creep speed | 6m/min |
| Rated input power | 60W |
| Rated current | 1.7A |
| Cabin material | aluminum alloy |
| track width | 40mm |
| Overall dimensions | 288mm * 278mm * 70mm (length, width, height) |
| Power supply mode | 220V AC |
Product Features
• Magnetic suction track climbing wall
Adopting magnetic suction track, it can be adsorbed on metal or magnetic material surfaces. The track adopts a 15 ° tilt design, which can
Firmly adhere to vertical, inclined, or inverted surfaces.
• Multi channel electromagnetic ultrasonic testing
Adopting electromagnetic ultrasonic testing, there is no high requirement for the surface of the tested object, and there is no need to polish or break the tested object
Bad.
• High precision ultrasonic thickness measurement
By using high-frequency pulse ultrasound and intelligent algorithms, accurate measurement can be achieved with an accuracy of 0.02mm.
• WiFi remote control
Connect the device to WiFi for remote control, with a remote control distance of up to 80m.
• Video image retrieval
500W high-definition camera, WiFi video transmission, real-time display of video images on the computer control end, timely monitoring of the environmental conditions of the tracked vehicle.
• Display of posture information
A high-precision attitude sensor can sense the three-axis posture of a tracked vehicle, making it convenient for inspectors to analyze and control the climbing detection robot from afar.
