تفاصيل المنتج:
|
| الجهد: | 220 فولت | معيار: | BS.EN.ASTM |
|---|---|---|---|
| الوظيفة: | كاشف عيب نير مغناطيسي | الكلمات الرئيسية: | كاشف عيب نير مغناطيسي |
| إبراز: | AC DC magnetic yoke flaw detector,220V magnetic particle testing equipment,BS EN ASTM flaw detector,220V magnetic particle testing equipment,BS EN ASTM flaw detector |
||
| Attribute | Value |
|---|---|
| Voltage | 220V |
| Standard | BS.EN.ASTM |
| Function | Magnetic yoke flaw detector |

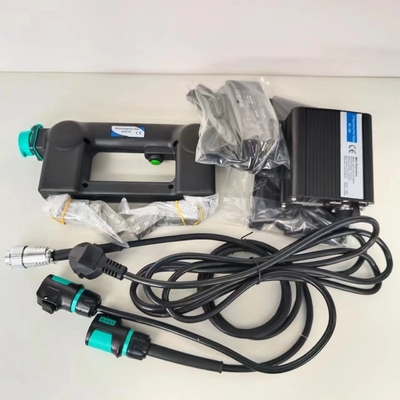

The HCDX-Y9 is an AC/DC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC/DC magnetic field for the detection of surface indications during magnetic particle testing.
Lightweight with an ergonomic grip and trigger, the HCDX-Y9 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch, power cord, mainboard, UV & white light lamp and legs all can be replaced by user, the HCDX-Y9 is easily serviceable not stop a job from getting done.
A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.
| Model Items | HCDX-Y9 |
|---|---|
| Electrical Requirements | AC110-115V 50/60Hz, AC220-230V 50/60 Hz, AC240V 50/60Hz |
| Waveform | AC |
| Tangential Field Strength | > 2kA/m at midpoint between legs / poles |
| Working temperature | -10～+40℃ |
| Duty Cycle | 50%, max on time is 90 seconds |
| Ingress Protection (IEC 60259) | IP54 |
| Relative humidity | <80% |
| Sensitivity | ASTM E1444-05, ASME 2007 page number V |
| DC power pack | Battery MT500 |
| AC working current | AC2.2A |
| DC working current | DC 1.5A |
| Battery charging time | 3h |
| Battery working time | 6h |
| Leg / Pole Span | 0~220mm |
| Leg size | 22*22mm |
| Power cord length | 3M |
| Lifting Force |
AC: ≥7.1kg (69N) DC: ≥22.2kg (216N) |
| Weight |
Yoke: 2.3kg DC Battery: 0.6kg |
