تفاصيل المنتج:
|
| اسم المنتج: | جهاز اختبار خشونة السطح | عرض: | 4 أرقام، شاشة LCD مقاس 10 مم، مع إضاءة خلفية زرقاء |
|---|---|---|---|
| حدود: | Ra، Rz، Rq، Rt | دقة: | ≤ ± 10٪ |
| مبدأ الاختبار: | نوع الحث متطورة للغاية | نصف قطر دبوس التحقيق: | 5um |
| إبراز: | Surface roughness tester with remote probe,Portable surface roughness measurement device,Ra Rz Rq Rt roughness tester |
||

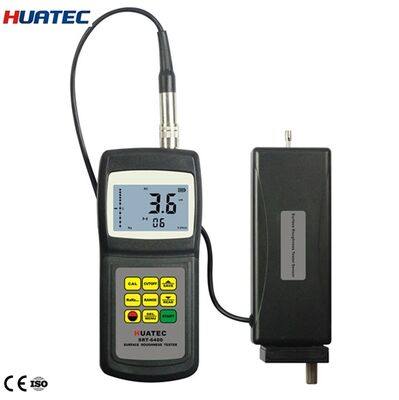

Surface Roughness Tester Separate Probe Ra Rz Rq Rt Ra/Rq:0.005-16um Remote Control Probe
Features:

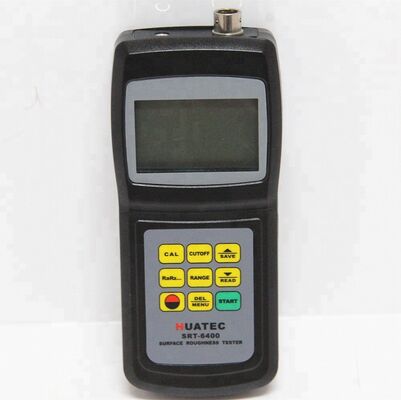

* Surface roughness tester SRT6400 is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters.

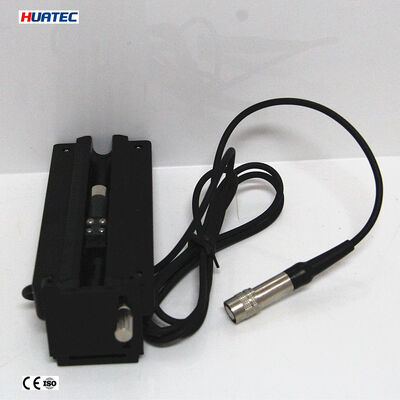

* When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the separate probe.
* This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier.
* The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz, Rq, Rt
* Highly sophisticated inductance sensor
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P
* Built-in lithium ion rechargeable battery and control circuit with high capacity
* Small in size, light in weight and easy to use
* Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C or USB interface.
*Manual or automatic shut down. The tester can be switched off by pressing the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last key operation.
*The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
*Metric /Imperial Conversion
Specifications
| Display | 4 digits, 10 mm LCD, with blue backlight |
| Parameters | Ra, Rz, Rq, Rt |
| Measuring Range | Ra, Rq: 0.005-16.00um/0.020-629.9uinch Rz,Rt: 0.020-160.0um/0.780-6299uinch |
| Accuracy | ≤±10% |
| Fluctuation of display value | Not more than 6% |
| Sensor | Test Principle: Highly sophisticated inductance type Radius of Probe Pin: 5um Material of Probe Pin: Diamond Dynamo-measurement of Probe: 4mN(0.4gf) Probe Angle: 90° Vertical Radius of Guiding Head: 48mm |
| Maximum driving stroke | 17.5mm/0.7inch |
| Cutoff length (l) | 0.25mm / 0.8mm / 2.5mm optional |
| Evaluation length | 5l |
| Driving speed | sampling length = 0.25mm Vt=0.135mm/s sampling length = 0.8mm Vt=0.5mm/s sampling length = 2.5mm Vt=1mm/s returning Vt=1mm/s |
| Profile digital filter | Filtered Profile: RC Filtered Profile: PC-RC Filtered Profile: Gauss Non-Filtered Profile: D-P |
| Resolution | 0.001μm if reading <10μm 0.01μm if 10μm≤reading<100μm 0.1μm if reading ≥100μm |
| Evaluation length | 5 cut-off |
| Power Li-ion battery | rechargeable |
| Operating conditions | Temp. 0~40°C Humidity <80% |
Standard Accessories:
Carrying case.................1pc
Main unit.........................1pc
Standard Sensor.............1pc
Standard Sample Plate...1pc
Power Adapter................1pc
Operation Manual...........1pc ,
Screwdriver.....................1pc
Adjustable Leg................1pc
Sensor Protector.............1pc
Optional Accessories:
1. Cable and Software for RS-232/USB
2. Extension Rod
3. Groove stylus
4. Curvature Probe
5. Measurement Stand
6. Bluetooth interface
