تفاصيل المنتج:
|
| تسارع ACC (الوحدة: م/ث2): | الذروة المكافئة | سرعة VEL (الوحدة: مم/ثانية): | القيمة الفعلية الحقيقية |
|---|---|---|---|
| DISP الإزاحة (الوحدة: m): | قيمة الذروة المكافئة | الكفاف EVA (وحدة: m/s2): | القيمة الفعلية الحقيقية |
| محل: | 100 نقطة (بما في ذلك 4 قيمة اهتزاز، شكل موجة واحد) | درجة حرارة التشغيل: | 0°C ~ 50°C، الرطوبة النسبية: <85% |
| إبراز: | Portable vibration tester for machinery,Vibration tester with envelope measurement,Acceleration velocity displacement tester |
||

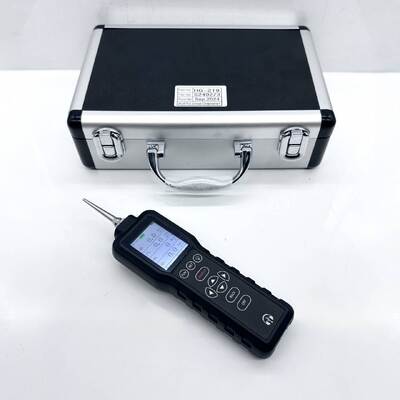

HG-219 Portable Vibration Tester Acceleration Velocity Displacement Envelope Measurement for Machinery Monitoring
HG-218 is a multi-purpose, multi-functional industrial detector. Features: multi-parameter vibration value, temperature measurement, electronic assisted auscultation, frequency analysis, lighting in one. Automatic data retention, automatic storage, automatic shutdown, easy to operate. It is suitable for the rapid condition detection of bearings, gears and reciprocating machinery of rotating machinery and equipment in industry. The measured values conform to the intensity standard of rotating machinery. It is widely used in machinery manufacturing, electric power chemical industry and other fields.
Technical parameter index:
Measurement range, frequency response range and accuracy:
| Name | Measuring range | Frequency range | precision |
| Peak acceleration | 0.1—199.9 m/s2 | 10-5KHz | ±5% |
| Velocity effective value | 0.1—199.9 mm/s | 10-1000Hz | ±5% |
| Displacement Peak value | 1—1999 um | 10-500Hz | ±5% |
| Envelope effective value | 0.1—19.9 m/s2 | 10-5KHz | ±5% |
| Temperature | -20—180 ℃ | ±1% |
Acceleration ACC (unit: m/s2) : equivalent peak
Speed VEL (unit: mm/s) : true effective value
Displacement DISP (unit: mm) : equivalent peak-peak value
Envelope EVA (unit: m/s2) : true effective value
Temperature TEP (unit: ° C) : Measures the surface temperature of an object using infrared spectroscopy
Store 100 points (including 4 vibration values, one waveform)
Operating temperature: 0℃ ~ 50℃, relative humidity: <85%
Volume: 180 x 50x 25(mm)
Weight: 100 g (including rechargeable battery)
12 months for the whole machine; Non-human factor damage excepted.
Please bring the warranty card or certificate when the equipment is repaired or calibrated.

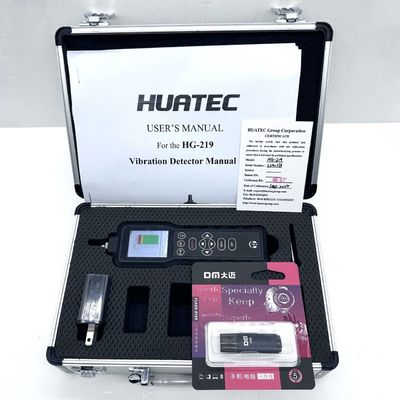

Standard configuration list
| Item/Model | HG-219 built-in | HG-219 External |
| Host machine | √ | √ |
| Acceleration sensor | built-in | √ |
| Magnetic holder | － | √ |
| Long rod | √ | － |
| Short probe | √ | － |
| Sensor conductor | － | √ |
| Rechargeable lithium battery(3.6V) | √ | √ |
| USB charging/communication cable | √ | √ |
| Charger | √ | √ |
