تفاصيل المنتج:
|
| درجة حرارة التشغيل: | ﹣10 درجة مئوية -50 درجة مئوية (14 درجة فهرنهايت -122 درجة فهرنهايت) | فئة الحماية: | IP65 |
|---|---|---|---|
| الرطوبة النسبية: | حتى 90% (30 درجة مئوية، بدون تكاثف) | تخزين البيانات: | يتم حفظ بطاقة الذاكرة المدمجة 2G وبيانات القياس ووقت العمل في وقت واحد |
| نطاق الطاقة النيوتروني: | 0.025eV-14MeV | نطاق طاقة جاما: | 30 كيلو فولت-3.0 ميجا فولت |
| إبراز: | Portable neutron gamma radiation detector,Dual channel LiI(Eu) CsI(Tl) probe,IP65 radiation dosimeter |
||

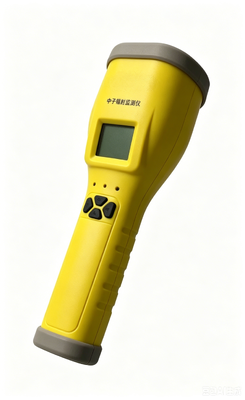

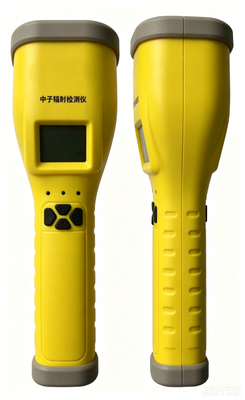

FJ-3101 Portable Neutron Gamma Radiation Detector Independent Dual Channel LiI(Eu) CsI(Tl) Probe IP65 Radiation Dosimeter
Features
❖ Independent neutron and gamma measurement channels and alarm prompts
❖ The neutron detector comes with a moderator, high sensitivity
❖ With the function of timing dose and finding the maximum dose
❖ High-definition color LCD screen, visual display of measured values
❖ Alarm threshold is continuously adjustable, sound and light alarm simultaneously
❖Anti-electromagnetic interference, passed CE certification
❖Lightweight and portable, anti-skid and shock-proof design
❖Complies with ANSI N42.35 and ITRAP standards
Technical parameter
|
|
Neutron |
Gamma |
|
Detector |
Lil(Eu) |
CSI(TI) |
|
Energy range |
0.025eV-14MeV |
30kev-3.0Mev |
|
Sensitivity |
0.5CPS/(uSvh), 2Cf source |
11CPS/(uSvh2), 1cs source |
|
Dose rate |
luSv.h--100mSv.h |
0.0luSv.h-100uSv. |
|
Dose |
0.0luSv--1Sv |
0.01uSv-10 Sv |
|
Relative error |
＜±20% (200keV-7MeV) |
＜±20% |
|
Operating temperature |
﹣10℃-50℃(14°F-122°F) |
|
|
Relative humidity |
Up to 90% (30℃, non-condensing) |
|
|
Protection class |
IP65 |
|
|
Battery working time |
2600mAh lithium battery, can work continuously for more than 20 hours |
|
|
Weight |
690g |
|
|
Size |
φ90×267(mm) (3.5"×10.5"") |
|
|
Data storage |
Built-in 2G memory card, measurement data and working time are saved simultaneously |
|
|
Data transmission |
USB, RS232 and wireless ports |
|
