تفاصيل المنتج:
|
| نطاق القياس: | 0.03-10.mm (طبقة قطران الفحم الإيبوكسي، وسط الأسفلت البترولي) | انتاج الجهد العالي: | 0.5-35 كيلو فولت |
|---|---|---|---|
| عرض: | العرض الرقمي | نظام التحكم في الجهد العالي: | الحاكم الرقمي |
| استهلاك: | < 5 واط | تأخير التنبيه: | 1-2 ثانية |
| مسبار الجهد العالي: | مولد الضغط العالي (استيراد) | مزود الطاقة: | 220 فولت تيار متردد |
| إبراز: | HD-120 digital holiday detector,portable coating porosity tester,overvoltage protection testing machine |
||

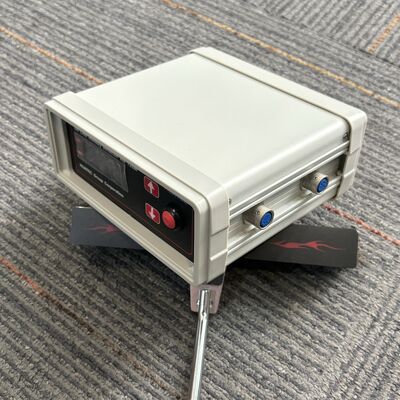

HD-120 Digital Display Holiday Detector Power On Self Test Overvoltage Protection Portable Coating Flaw Porosity Testing Machine
Features
1,Microelectronic integrated high voltage generator,to overcome the electrostatic;
2,digital display,high-precision;
3,Automatic switch for High voltage and source voltage;;
4,Power on self test function;
5,protective function when mistakenly entered.
| Technical parameters | |
|
1,Measuring range:0.03-10.mm(Epoxy coal tar pitch,Petroleum asphalt medium) 2,Output high voltage:0.5-35KV 3,Display:digital display 4,High voltage control system:digital governer 5,220V AC power supply 6,Consumption:<5w 7,Alarm delay:1-2s 8,High voltage probe:high pressure generator (import) 9,Packing:Aluminum box 10,Main dimension:165mm×155mm× 68mm 11,Weight:1kg |

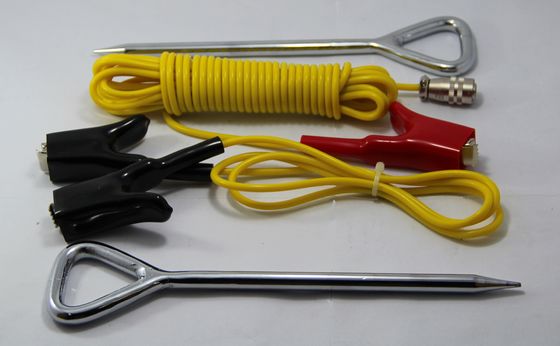

Standard accessories
220Vpower line,high pressure gloves, long cable, short connecting line, Connecting magnet, earth rod, The brush plate, Manual
![]()
![]()
![]()
![]()
