تفاصيل المنتج:
|
| نطاق العرض: | 0.0-119.9,120-1000 ج. | خطأ في العرض: | 0.0-119.9 <1 GU ， 120-1000 <1 ٪ GS |
|---|---|---|---|
| الاستقرار: | 0.0-119.9 <0.4gu/30min ， 120-1000 Gu <2gu/30min | بقعة القياس: | 14 × 48 （ملم） القطع الناقص |
| البعد: | 114 × 35 × 65 (ملم) | إمدادات الطاقة: | 4.8 فولت (بطارية قابلة للشحن بالداخل) |
| إبراز: | Metal mirror Gloss Meter,Miniaturized Metal mirror Gloss Meter,High Accuracy mirror Gloss Meter,Miniaturized Metal mirror Gloss Meter,High Accuracy mirror Gloss Meter |
||

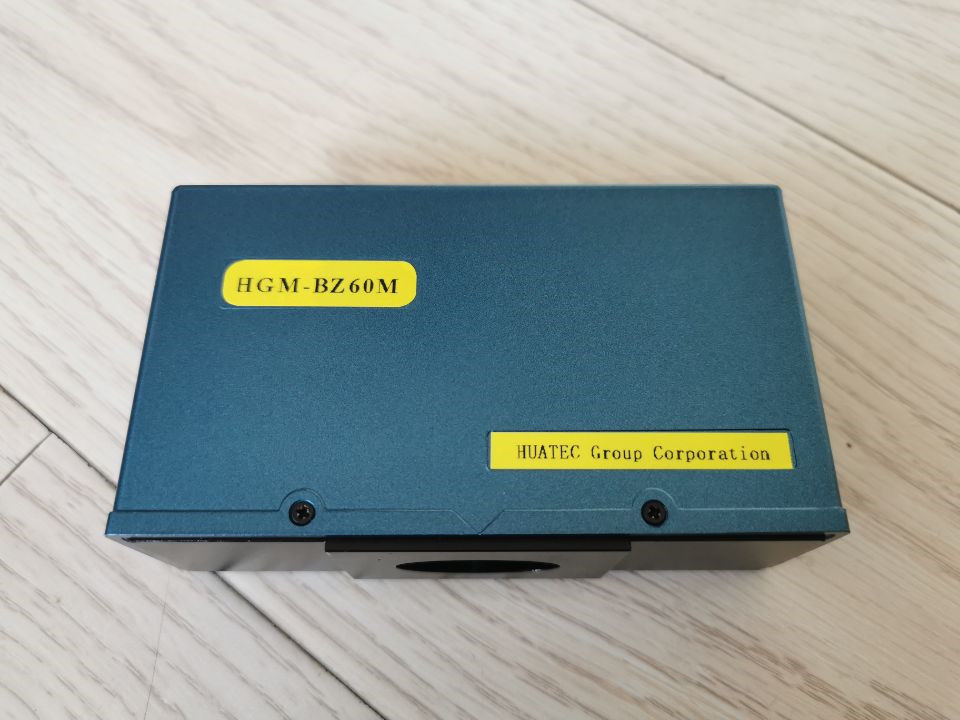

HGM-BZ60M Intelligence High Accuracy Miniaturized Metal mirror Gloss Meter
1.Reference standard and applicable scope
HGM-BZ60M. The intelligence gloss meter executive the ISO-2813,ISO-7668,GB8807standard which is the high accuracy, the miniaturized intelligence gloss meter.
2.Application
●All kinds of coating and finishing surfaces, such as paints, varnishes, printing ink, etc.
●Decorative materials, such as marble, granite, polishing brick, ceramic tile and so on.
●The other kinds of materials and objects, such as plastic, woodenware, paper, etc.
HUATEC Gloss meter Reference angle for different application
| Angle | Point of reference for (foreign) (China) |
Application
|
|
20° |
DIN-67530 ISO-2813 GB9754 ASTM-D523 ASTM-D2457 GB8807 |
high gloss paint, ink, plastic. |
|
20° |
ASTM-D1834 TAPPI-T653 GB8941.1 |
high gloss stencil, cast coated paper. |
|
45° |
ISO-2767 GB8941-2 | surface of aluminum and aluminum oxide. |
| 45° |
ASTM-C346 GB/T3295 ASTM-D2457 GB8807 |
pottery, ceramic, plastic, plastic film, Stone |
| 45° | JIS-E8741 | pottery, ceramic, plastic, plastic film, Stone |
|
60° |
ISO-2813 GB9754 ASTM-C584 GB9966 ASTM-D523 DIN-67530 ASTM-D2457 GB8807 |
Mid-gloss paint, ink, plastics, ceramics, stone.
|
|
75° |
ISO-8254 TAPPI-T480 GB8941.3 |
copperplate paper |
| 85° |
ISO-2813 GB9754 DIN-67530 ASTM-D523 |
high gloss paint, ink, plastic. |
The technical parameters up to JJG 696 (First-level standard).
(1)display range of:0.0-119.9,120-1000 Gu
(2)display error:0.0-119.9<1 Gu,120-1000<1% Gs
(3)stability:0.0-119.9 <0.4Gu/30min,120-1000 Gu <2Gu/30min
(4)measurement spot:14×28(mm)ellipse
(5)dimension:114×35×65 (mm)
(6)power supply:4.8V (Rechargeable battery inside)
4.Features
1. Small and light, real easy to be carried and used.
2. 4.8V Rechargeable battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing forever.
5. Quartz crystal standard board, no excursion.
6. Single-chip microcomputer control circuit, the new keystrokes, light and portable, a single calibration, intelligent calibration record values
Standard Delivery
| Gloss meter | 1pc |
| Instrument case | 1pc |
| Standard board |
2pc A black board is used for the highlight calibration A white board is used for the low light calibration |
| Battery charger | 1pc |
| English instruction manual | 1pc |
| Calibration certificate | 1pc |
