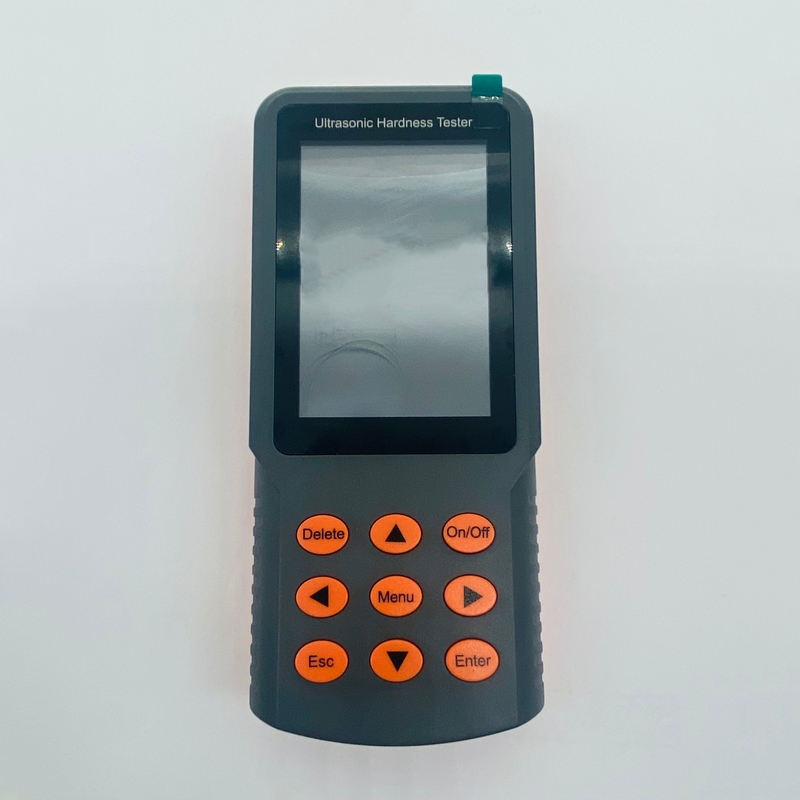

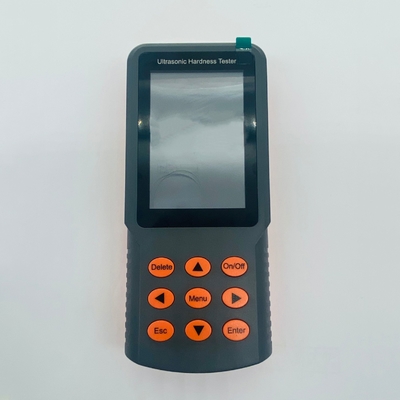

HUH-6M UCI Ultrasonic Hardness Tester with Multi-scale Digital Display

Traditional hardness testing methods like HB, HRC, HV, and HL have limitations. HB and HRC require strong test force, leaving large indentations that damage surfaces. HV testing requires optical methods and skilled operators, and cannot directly test large workpieces. The HUH-6M ultrasonic hardness tester uses ultrasonic contact impedance method for comparison testing, offering advantages of high precision, fast speed, portability, and easy operation.

• Hardness test of flange edge and gear root stamping parts, mold, thin plate, face-hardened gear tooth, gear groove and taper part
• Hardness test of axle and thin-wall pipes and vessels
• Hardness test of wheels and turbine rotors
• Hardness test of bit edge
• Hardness test of welding parts
• Measure the depth of deep hole with certain aperture, concave and convex mark with large radians, and irregular plane
• Hardness test of most ferrous and nonferrous metals and their alloys in industrial production

• New appearance design, innovative sculpt, convenient to hold and good craft
• 3.5 inches large LCD screen with 320×480 color graphics dot matrix, beautiful font and graphics, rich information and clear display
• Full English display, menu-type operation, few keys, simple and convenient to operate
• For materials with different elastic modulus, only a simple point calibration is required to adapt to the new material
• Provide multi-point calibration function for any hardness standard
• High accuracy -- ±3%HV, ±3%HB, ±1.5HR (using test stand)
• Tiny test indentation - smaller than a Leeb hardness tester
• High test speed -- output test results within 2S
• Easy to test on assembly line
• 50 sets of data storage -- the data includes time information
• 360° test without correction

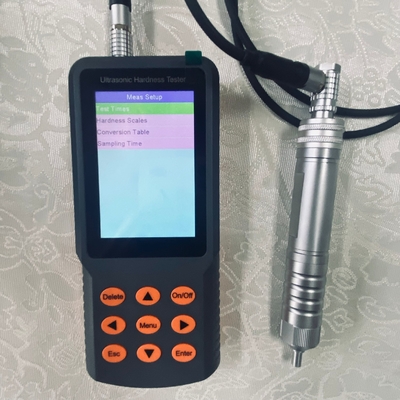

Main unit, Probe (2kgf), Probe cable, 5V ac power adapter, Custom-made carrying case, Standard test block

Optional Accessories: Probe (optional 0.5kgf, 1kgf, 5kgf, 10kgf)
