تفاصيل المنتج:
|
| تناوب السرعة: | 50-1000 دورة في الدقيقة يمكن تبديل الدوران العكسي | Sample plate speed: | 30-200 RPM reverse rotation can be switched |
|---|---|---|---|
| Working air source pressure: | More than 0.6MPa | قوة المحرك: | 0.75 كيلو واط |
| مزود الطاقة: | تيار متردد 220 فولت، 50/60 هرتز، 2 كيلو وات | ||
| إبراز: | automatic metallographic grinding machine,multi-point pressure polishing machine,central pressure metallographic polisher,multi-point pressure polishing machine,central pressure metallographic polisher |
||
| Rotate speed | 50-1000 RPM reverse rotation can be switched |
| Sample plate speed | 30-200 RPM reverse rotation can be switched |
| Working air source pressure | More than 0.6MPa |
| Motor power | 0.75 Kw |
| Power supply | AC220V, 50/60Hz, 2KW |

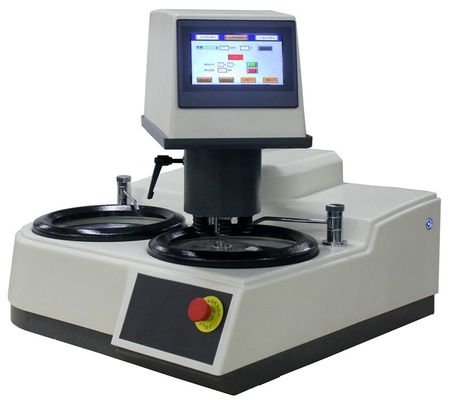

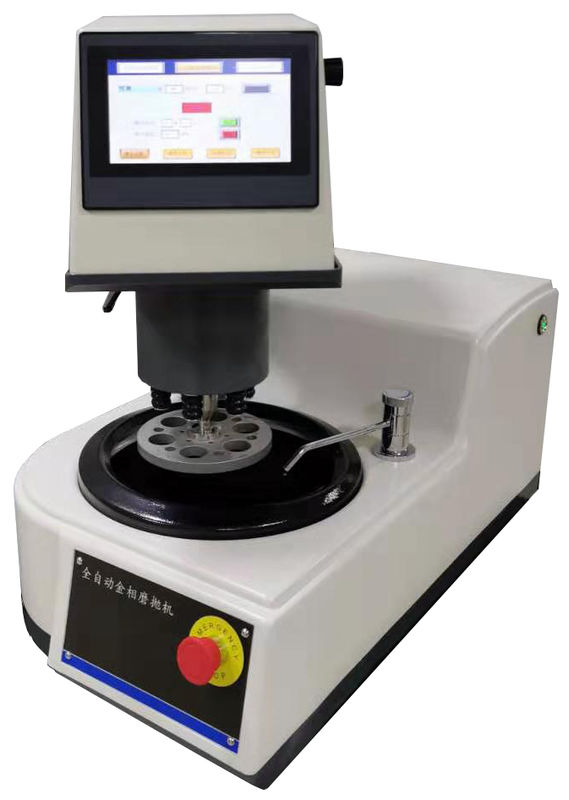

The HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding and Polishing Machine features:
| Item | HAP-1000XP | HAP-2000XP |
|---|---|---|
| Station | Single disc | Double disc |
| Working disc diameter | Standard with φ254mm (optional φ230mm/φ203mm, customized φ304mm) with magnetic conversion disk system | |
| Sample holder | 30mm can be 6 holes (optional 20mm 6 holes, 40mm, 50mm 3 holes, others can be customized) | |
| Overall dimensions | 760 x 470 x 700mm | 760 x 730 x 700mm |
| Weight | 63kg | 74kg |
| Item | Quantity (Single disk/double disk) |
|---|---|
| Central loading mechanism | 1 set |
| Magnetic disk (254mm) | 1/2 pcs |
| Diamond suspension polishing fluid (1 micron, 6 micron 200 ml) | Each 1 bottle |
| Anti-sticking plate | 2 pcs |
| Product | Description |
|---|---|
| MAGNOMET |
|
| GSC250A |
|
