تفاصيل المنتج:
|
| قطر مكافئ: | 200 مم قياسي (مخصص φ230mm/φ250mm) | سرعة الدوران: | 50-1000 لفة / دقيقة |
|---|---|---|---|
| محرك كهربائي: | 0.75W | أبعاد التغليف الخارجي: | 780*580*460mm |
| الوزن الإجمالي: | 38.4 كجم | ||
| إبراز: | metallographic grinding polishing machine,stepless speed regulation polishing machine,HAP-1B sample grinding machine,stepless speed regulation polishing machine,HAP-1B sample grinding machine |
||

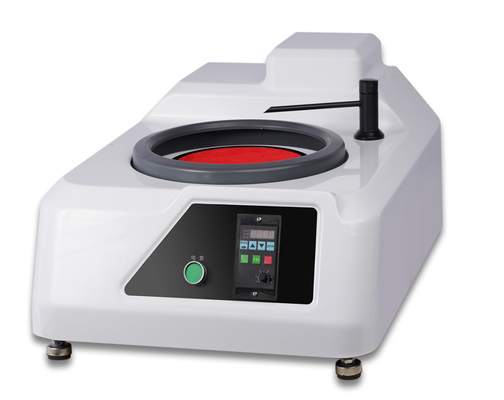

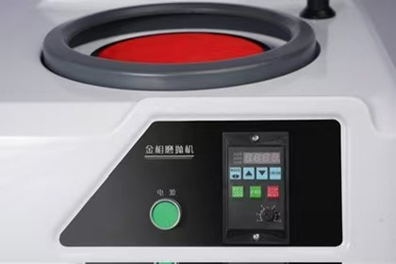

HAP-1B Stepless Speed Regulation Metallographic Sample Grinding and Polishing Machine
Main features:
The metallographic sample grinding and polishing machine is a new type of grinding and polishing machine with grinding and polishing functions developed by our company in response to the current market. This machine features stepless speed regulation and is characterized by a simple and fashionable appearance as well as strong practical functionality. One design patent and one utility model patent have been obtained. This machine adopts ABS shell mold forming process, thickened steel base plate, and the whole machine is firm and beautiful.
Main technical specifications
| Parabolic diameter | Standard 200mm (customized φ230mm/φ250mm) |
| Rotational speed | 50-1000r/min |
| Electric motor | 0.75W |
| Outer packaging dimensions |
780*580*460mm |
| Net dimensions | 690*480*325mm |
| Gross weight | 38.4Kg |
| Net weight | 25.2Kg |
Standard configuration:
Two pieces of φ200 metallographic sandpaper
Polishing flannel φ200, 1 piece
One water inlet pipe
One drain pipe
Optional configuration:No
