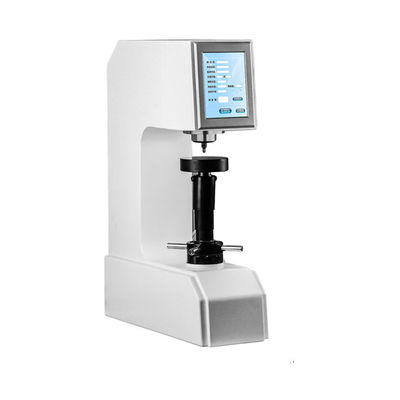

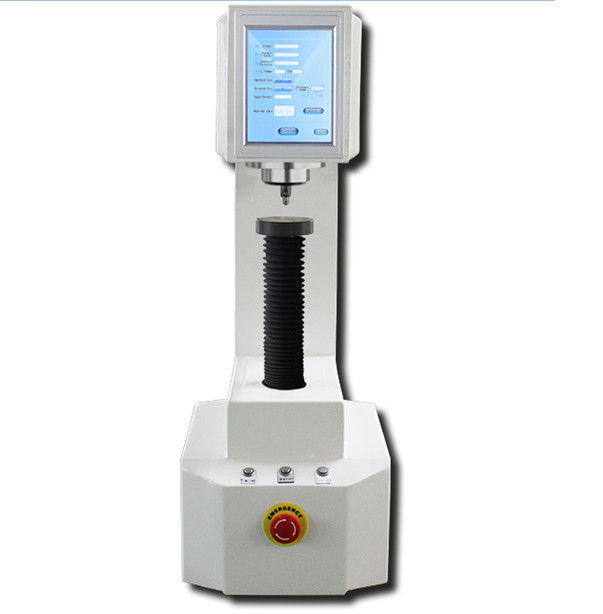

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

Model number

HR-150DT-P

Initial test force

10 KGF (98.07 N)

Total test force

60kgf(588N)   100kgf(980N)    150kgf(1471N)

Rockwell hardness scale

HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV

Scope of testing

HRE:70-100   HRL:100-120  HRM:85-110  HRR:114-125

Load retention time

0-99s

Hardness value resolution

0.1 HR

Test force error

< 1.0%

Data output

LCD display

Touch screen size

8 inches

Data storage

Can store 20 test results, built-in printer RS-232 interface

Compliant with standards

GB/T230.2, GB/T3398.2, JB/T7409

Maximum allowable specimen height

200mm

Distance from indenter to machine wall

200mm

Size

560×200×800mm

Weight

70kg

Power supply

AC220+5%,50 to 60Hz

Name

quantity

Name

Quantity

Touchscreen pen, printer paper

1 each

Large, medium, and V-shaped test stands

1 each

Ball indenter (diameter 3.175, 6.35, 12.7mm)

3 pieces

Hardness blocks (HRE,HRL,HRM,HRR)

4 blocks

Spirit level

1

Horizontal adjustment foot

4

Power cord

A root

Dust bag

1

Product certificate, warranty card

1 copy

Instructions

1 copy
