تفاصيل المنتج:
|
| حجم التركيز: | 3.0mm | زاوية الإشعاع: | 44 درجة مئوية |
|---|---|---|---|
| الاختراق القصوى (FE): | 22mm (a3) f = 600mm | نطاق تعديل كيلو فولت: | 80 ~ 160 كيلو فولت ± 1KV |
| إبراز: | high voltage X ray flaw detector,constant potential flaw detector,non-destructive testing equipment with warranty,constant potential flaw detector,non-destructive testing equipment with warranty |
||

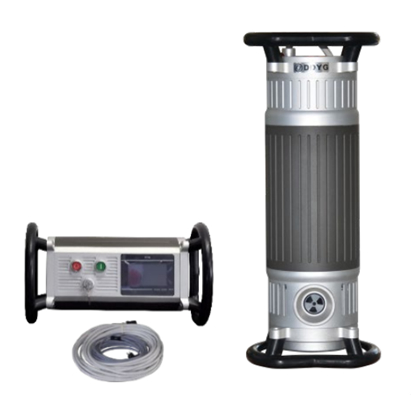

XXG-H160GP High voltage X ray constant potential flaw detector
General features:
*Continuous exposure is possible at 35 ℃ and 160kv/3mA conditions;
*Wide input voltage range, suitable for power supply of various generators;
*Lightweight, strong penetration, and stable performance;
*The controller adopts a cylindrical design with unique creativity;
*The operation interface is intuitive and easy to operate;
*High penetration ability: Max.22mm
*High power efficiency, can be 95%,small cable diameter and light weight.
*Can continuously work 99 minutes, no rest time, improve the work efficiency to a large extent
*Continuously adjustable for tube voltage and tube current, the machine can penetrate thickness from 0.5mm to 22mm due to different expose time setting. Better image clarity.
*High frequency design will reduce most of fault because it do not have high voltage coil.
*Can work with DR Panel image system directly.
Technical Specifications
| Item | Parameters | |
| X ray Generator | Weight | 17kg |
| The external dimensions include the end ring | ф246x596(DXL) | |

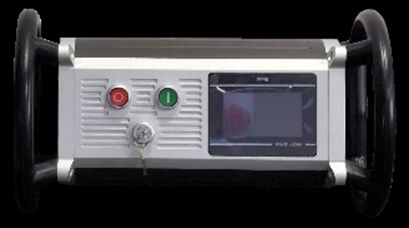

| X ray Controller | Weight | 9.6kg |
| Dimension | Including end ring: ф264x458(mm),excluding end ring: ф188x350 (mm) | |
| Focus Size | 3.0mm | |
| Radiation Angle | 44°° | |
| Maximum penetration (Fe) |
22mm(A3) F=600mm |
|
| kV adjustment range | 80~160 kv ±1kv | |
| mA adjustment range | 0.5~3 mA ±0.1mA | |
| Max power | 480W | |
| Protect temperature | 75℃ | |
| Duty Circle | 100% at an ambient temperature of 20 ℃ | |
| Storage temperature | -25°C~ +70°C | |
| Power supply | AC200~264 V/50~60 Hz | |
The whole machine features: high frequency, low Ma, continuous work. Wide range hardware design has long life and very low failure rate
Strong anti-jamming, power grid can work in 180V~260V, Light cable and light weight of the head
The maximum penetration force: 22mm (F600, D > 2)
Random spare parts
10 core signal connecting cable
2 core power cable
A ground line
A set of Appendage package
The whole equipment is guaranteed for one year (except for man-made causes and force majeure reasons).
