تفاصيل المنتج:
|
| نطاق تعديل كيلو فولت: | 80 ~ 160 كيلو فولت ± 1KV | نطاق تعديل مللي أمبير: | 0.5 ~ 3 ma ± 0.1ma |
|---|---|---|---|
| أقصى قوة: | 480W | حماية درجة الحرارة: | 75 |
| إبراز: | high voltage X ray flaw detector,constant potential flaw detector,non-destructive testing X ray equipment,constant potential flaw detector,non-destructive testing X ray equipment |
||

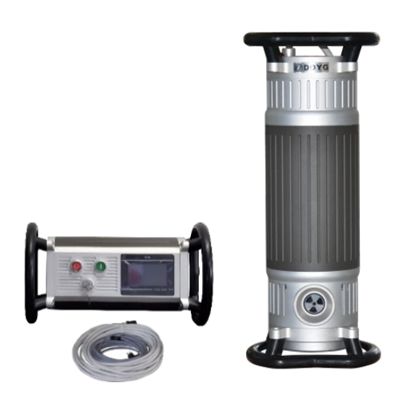

XXG-H160GP High voltage X ray constant potential flaw detector
*Continuous exposure is possible at 35 ℃ and 160kv/3mA conditions;
*Wide input voltage range, suitable for power supply of various generators;
*Lightweight, strong penetration, and stable performance;
*The controller adopts a cylindrical design with unique creativity;
*The operation interface is intuitive and easy to operate;
*High penetration ability: Max.22mm
*High power efficiency, can be 95%,small cable diameter and light weight.
*Can continuously work 99 minutes, no rest time, improve the work efficiency to a large extent
*Continuously adjustable for tube voltage and tube current, the machine can penetrate thickness from 0.5mm to 22mm due to different expose time setting. Better image clarity.
*High frequency design will reduce most of fault because it do not have high voltage coil.
*Can work with DR Panel image system directly.
Technical Specifications
|
Item |
Parameters |
|
|
X ray Generator |
Weight |
17kg |
|
The external dimensions include the end ring |
ф246x596(DXL) |
|
|
X ray Controller |
Weight |
9.6kg |
|
Dimension |
Including end ring: ф264x458(mm),excluding end ring: ф188x350 (mm) |
|
|
Focus Size |
3.0mm |
|
|
Radiation Angle |
44°° |
|
|
Maximum penetration (Fe) |
22mm(A3) F=600mm |
|
|
kV adjustment range |
80~160 kv ±1kv |
|
|
mA adjustment range |
0.5~3 mA ±0.1mA |
|
|
Max power |
480W |
|
|
Protect temperature |
75℃ |
|
|
Duty Circle |
100% at an ambient temperature of 20 ℃ |
|
|
Storage temperature |
-25°C~ +70°C |
|
|
Power supply |
AC200~264 V/50~60 Hz |
|
The whole machine features: high frequency, low Ma, continuous work. Wide range hardware design has long life and very low failure rate
Strong anti-jamming, power grid can work in 180V~260V, Light cable and light weight of the head
The maximum penetration force: 22mm (F600, D > 2)
Random spare parts
10 core signal connecting cable
2 core power cable
A ground line
A set of Appendage package
The whole equipment is guaranteed for one year (except for man-made causes and force majeure reasons)
