تفاصيل المنتج:
|
| نطاق قياس الإضاءة: | (0.1 ~ 199.9×103) ليكس | خطأ في الإشارة النسبية: | <± 4.0% |
|---|---|---|---|
| خطأ في مطابقة V (لامدا).: | أقل من 6.0% | خطأ خاصية جيب التمام: | < 4.0% |
| وقت الاستجابة: | <1 ثانية | ||
| إبراز: | HD-10 LCD UV light illuminometer,Ultraviolet visible light display panel,Non-destructive testing illuminometer with LCD,Ultraviolet visible light display panel,Non-destructive testing illuminometer with LCD |
||

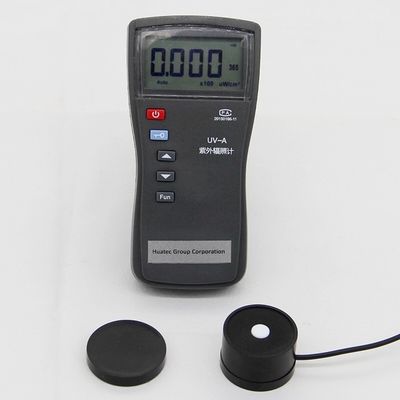

HD-10 LCD display panel Ultraviolet Visible Light Illuminometer
Product overview
Ultraviolet/visible (radial) illuminance meter adopts SMT patch technology, adopts and low power consumption digital chip, the instrument shell is streamlined design, the detector after strict spectrum and Angle characteristics correction, stable performance, strong applicability. The instrument integrates two functions of ultraviolet irradiance measurement and illumination measurement, and is widely used in various fields such as photochemistry, polymer material aging, flaw detection, ultraviolet light source, plant cultivation, large-scale integrated circuit industry, agriculture, architecture, environment and scientific research.
Specifications
| Illumination measurement range | (0.1 ~ 199.9×103) lx |
| Relative indication error | <± 4.0% |
| V (lambda) matching error | less than 6.0% |
| Cosine characteristic error | < 4.0% |
| Response time |
<1 second |
| Ultraviolet wavelength range and peak wavelength |
lambda P (315 ~ 400) nm, lambda P = 365nm |
| The irradiance measurement range | muw /cm2 (0.1 ~ 199.9×103) |
| Long wave response error | <15% |
| Relative indication error |
<± 8% (relative to NIM standard) |
| Nonlinear error | <± 1.5% |
| Response time | <1 second |
| Zero value error |
(full range FS) < ±1.0% of full range |
| Shift error |
<±1.0% |
| Fatigue error | <3.0% |
| Ambient temperature |
(0~40)℃; Humidity < 85% RH |
| Size and weight | 160mm×78mm×43mm; 0.2 kg |
| Power supply | 6F22 9V laminated battery (non-rechargeable battery) |
| Overall power consumption | < 0.1va |
Product features
Spectral and angular characteristics are strictly corrected
Digital liquid crystal display with backlight
Manual/automatic range switching
Digital output interface (USB, redundant power supply)
Low battery alert
Automatic delay shutdown
Number holding
Tap the button to operate, beeping prompt
