تفاصيل المنتج:
|
| اسم المنتج: | الفيلم الإشعاعي الصناعي | نموذج: | D4 D5 D7 |
|---|---|---|---|
| طَرد: | 100 ورقة أو 50 ورقة | مقاس: | 356 ملم × 432 ملم 14 بوصة × 17 بوصة 305 ملم × 381 ملم (12 بوصة × 15 بوصة) 260 ملم × 360 ملم 10 بوصة. |
| إبراز: | HUATEC industrial radiographic film,D4 D5 D7 NDT testing film,industrial X-ray film for NDT,D4 D5 D7 NDT testing film,industrial X-ray film for NDT |
||

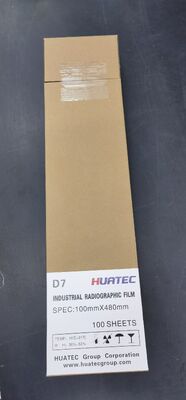

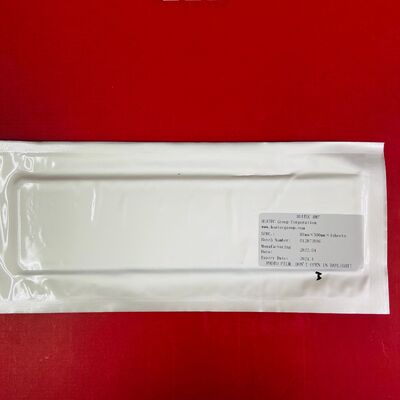

D4 D5 D7 HUATEC Industrial Radiographic Film
Product name and model specification
| Model | Specification |
|
D4,D4-D,H4,LA400,D5,D5-D, D7,D7-D,H7,H7-D |
356mm×432mm(14in.×17in.),305mm×381mm(12in.×15in.),260mm×360mm (10in. ×14in.),70mm×300mm,80mm×150mm,80mm×240mm,80mm×300mm,80mm×360mm, 100mm×356mm,195mm×275mm,70mm×200m,80mm×100m,80mm×200m |
Other specifications and packing capacity can also be provided according to customer requirements.
Features and uses
Industrial X-ray film is a kind of high resolution and high image resolution film which is widely used in nondestructive flaw detection. The film has high sensitivity, high contrast, high definition,
It can be directly or with lead sensitization screen for X or γ ray exposure. It is suitable for electronic components, synthetic materials, casting and casting, welding, etc.
NDT testing for shipbuilding, national defense and nuclear industry, aerospace and aviation industry, etc. Using blue polyester sheet base, two sides coated with emulsion layer, layer and
Protective layer. This film has rich layers, high image resolution and good definition. This film can be processed at room temperature, also can be processed by high temperature machine.
Features and uses
 |
GB/T19348.1 | EN 584.1 | ASTME 1815-08 | ISO 11699-1 |
| D4,D4-D,H4 | C3 | C3 | Ⅰ | C3 |
| D5,D5-D | C4 | C4 | Ⅰ | C4 |
| D7,LA400,D7-D,H7,H7-D | C5 | C5 | Ⅱ | C5 |
