تفاصيل المنتج:
|
| اسم المنتج: | مقياس سمك الموجات فوق الصوتية من خلال الطلاء | دقة: | 0.001 ملم أو 0.0001 بوصة |
|---|---|---|---|
| معدن: | الصلب والحديد الزهر والألومنيوم والنحاس | أوضاع القياس: | صدى النبض، صدى الصدى، واجهة الصدى |
| إبراز: | digital thru coating thickness gauge,high precision ultrasonic thickness meter,non destructive testing equipment with warranty,high precision ultrasonic thickness meter,non destructive testing equipment with warranty |
||

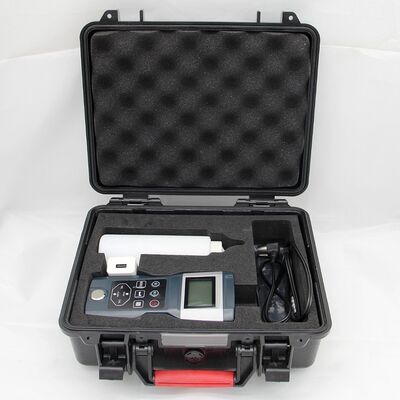

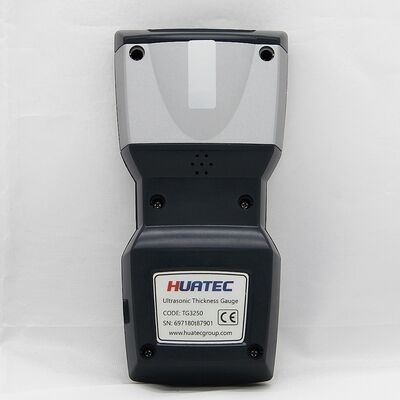

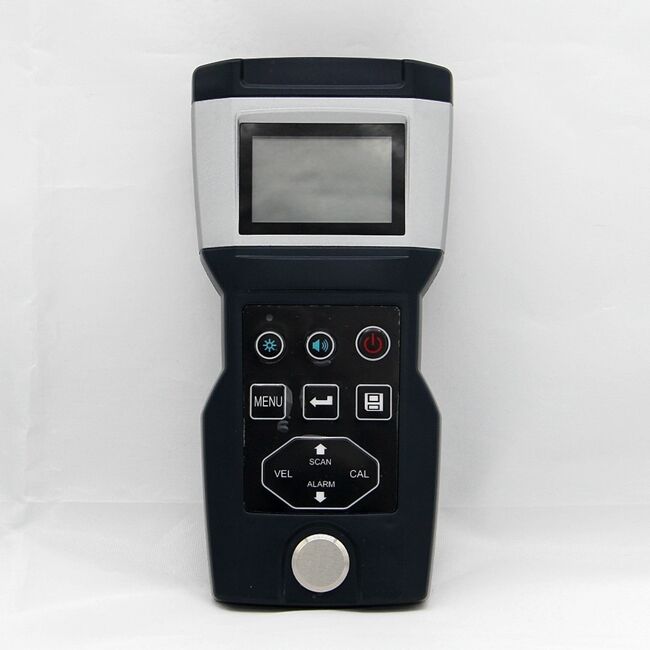

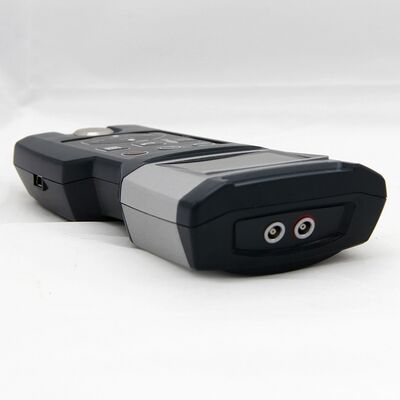

High Precision Digital Thru Coating Ultrasonic Thickness Gauge
TG-3250 is a high precision digital ultrasonic thickness gauge. Based on the same operating principles as SONAR it is capable of measuring the thickness of various materials with accuracy as high as 0.001 millimeters, or 0.0001inches. It is adapted to measure the thickness of good conductor for ultrasonic, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on.
Technical Parameters
| Measure Range | 0.75~400 mm (Steel) | Sound Velocity Range | 1 ~ 19999 m/s |
| Resolution | 0.001mm / 0.0001inches | Accuracy | 0.03mm or 0.3%*H |
| Measuring Period | 4 times per second | Probe Frequency | 2MHz,3MHz,5MHz,7.5MHz |
| Calibration Mode | Probe Calibration & Two Point Calibration | Calibration block | 4.000mm(Steel) |
| Measurement Mode | P-E, I-E, E-E | Gain Adjustable | 16 Stages |
| Measuring Mode | Single point, scan, min/max capture, differential, alarm | Data Storage | 1000 measurements, including thickness, sound velocity, time, etc. |
| Display | English / Chinese selectable, FSTN LCD Display with backlight |
Display Content | Thickness, Sound velocity, Stability, Battery, Measuring Mode, etc. |
| Communication | Bluetooth & Mini-USB interface, virtual serial port protocol | Optional portable Bluetooth thermal printers | |
| Power Supply | 3.7V Li-Ion chargeable battery | Power off | Timeout power off, low battery power off |
| Usage Temperature | -10 ~ 50 °C | Storage Temperature | -30 ~ 60 °C |
| Size | 157mm*78mm*37mm | Weight | About 260g |
| Shell Material | ABS & PC alloy | Box Material | ABS (IK08 / IP67) |
Features:
Main Functions:
Probe Parameters
The technical indicators (the measurement range is related to the properties of the material to be measured, coupling status and other influencing factors, and the measurement range of 45# steel is shown in the table)
Pro
| Label | S15-P06 | S2M-P14 | G5M-P10 | G5M-P08 | G7M-P06 | G2M-P12 | H3M-P12 |
| Type | Single | Single | Dual | Dual | Dual | Dual | Dual |
| Measure Range | 0.15~28 mm | 30~2000 mm | 0.8~300 mm | 0.8~225 mm | 0.8~50 mm | 3.0~700 mm | 2.0~200 mm |
| Measure H<10 | 0.01mm | 0.03mm | 0.03mm | 0.03mm | 0.05mm | 0.05mm | |
| Error H≥10 | 0.3%H | 0.5%H | 0.3%H | 0.3%H | 0.3%H | 0.5%H | 0.5%H |
| Probe Outer diameter | 8mm | 19mm | 13mm | 11mm | 9mm | 17mm | 15mm |
| Probe Frequency | 15MHz | 2MHz | 5MHz | 5MHz | 7.5MHz | 2MHz | 3MHz |
| Contact Temperature | -10~60°C | -10~310°C | -10~60°C | -10~60°C | -10~60°C | -10~60°C | -10°~310°C |
| Using range | High precision measurement or measurement of ultra-thin work piece | No delay, measuring ultra-thick work piece | Measurement of conventional work piece | Micro-diameter probe for both curved surface and conventional measurement | Micro-diameter probe to measure curved surface and small work piece | Coarse diameter probe for measuring castings and thicker work pieces | High temperature probe to measure high temperature work piece |
Version Comparison
| Version | Measurement Mode | Thru-paint measurement | Measure Coatings |
| Basic | P-E | x | x |
| Standard | P-E, I-E, E-E | √ | x |
| Advanced | P-E, I-E, E-E, E-C, C-E | √ | √ |
