تفاصيل المنتج:
|
| الكاشف: | كاشف أنبوب GM المعوض للطاقة | معدل الجرعة: | 10 ميكروسيفرت/ساعة |
|---|---|---|---|
| استهلاك الطاقة: | أقل من 2 ميغاواط | درجة حرارة: | أقل من -20 درجة مئوية - +50 درجة مئوية |
| رطوبة: | 0-95% رطوبة نسبية (+35 درجة مئوية) | خطأ: | ≤ ± 10٪ |
| إبراز: | mini wearable radiation dosimeter,radiation monitor with alarm,portable radiation detection equipment,radiation monitor with alarm,portable radiation detection equipment |
||

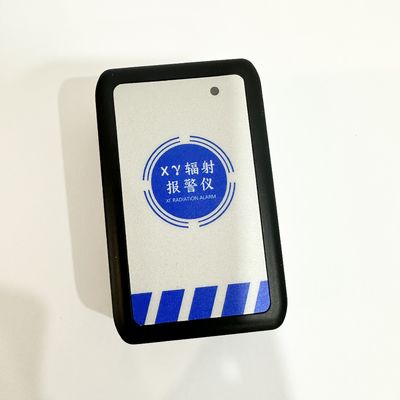

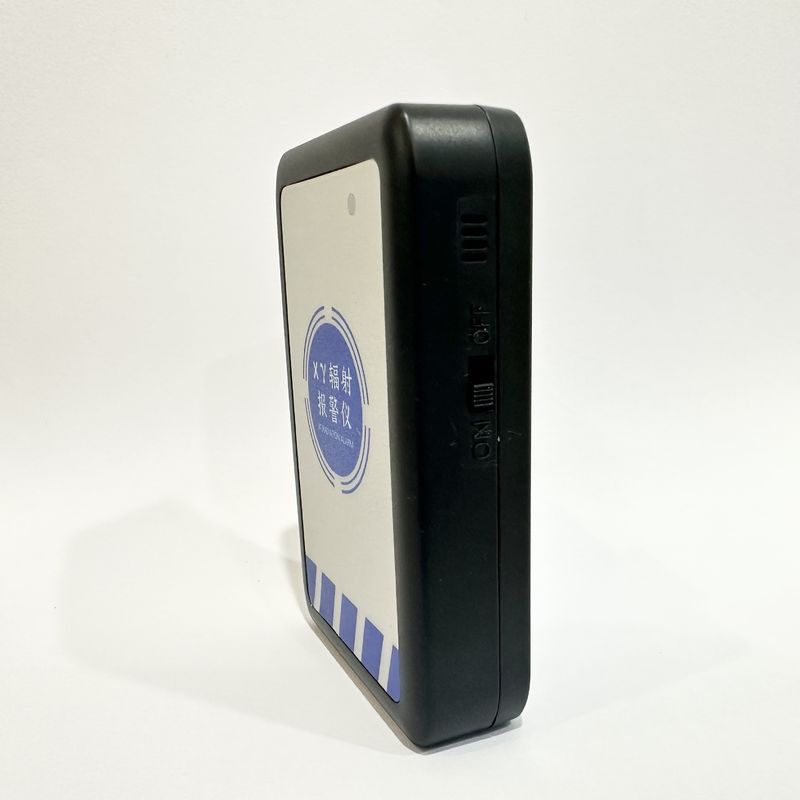

FJ-F100 Mini Wearable Radiation Dosimeter Audible Visual Alarm Radiation Monitor
Product introduction
The FJ-F100 Personal radiation Sounder is a wearable personal monitor used to measure the intensity of X and gamma radiation fields, and is used for radiation monitoring of workers in the fields of isotope application, gamma irradiation, X and gamma ray nondestructive testing, X-ray diagnosis, accelerator and cobalt source therapy. Due to its high sensitivity, the instrument is also responsive to ambient background radiation. The instrument indicates the level of radiation in a person's place by the frequency of sound and flash. Because of its low power consumption, small size and low cost, the instrument has been widely used. The instrument has passed the ministerial technical appraisal.
Technical parameter
| Detector | Energy compensated GM tube detector |
| Applicable radiation field and measuring range | Suitable for X and γ radiation field, maximum permissible dose rate 10μSv/h. |
| Power consumption | The power consumption is less than 2mW, using two No. 7 batteries. Up to 700 hours of continuous use. |
| Product size | 88mm(H)× 57mm(W)×29mm (D) |
| Weight | bare 65g |
| Temperature and humidity characteristics |
under -20℃--+50℃, error ≤±10%; At 35℃, humidity 0-95%RH (+35℃) error ≤±10% |
Application scenario
It is suitable for protection and personal dose monitoring of workers in industrial non-destructive testing, isotope application, nuclear industry, hospital, railway, civil aviation, environmental protection and other radioactive application fields.
Performance characteristics
Highly sensitive detector, also suitable for environmental background.
Strong anti-interference ability
Sets the alarm threshold to detect sudden radiation hazards
The instrument has a back clip for easy carrying when working
Alarm function: audible and visual alarm, undervoltage alarm, optional vibration version.
