تفاصيل المنتج:
|
| نطاق اختبار الجهد: | 1 كيلو فولت 50 كيلو فولت | نطاق السماكة: | 0.35ملم |
|---|---|---|---|
| دقة: | 0.1 كيلو فولت | دقة الجهد: | ± ((0.1kv + 3٪) |
| أقصى سجل تسرب: | 999 الحد الأقصى | عرض: | شاشة LED 128 * 64 مع إضاءة خلفية |
| قوة: | ≤6W | فولتاج المحول: | المدخلات AC 100-240V المخرجات 12.6V 1A |
| إبراز: | portable holiday detector for metal coating,pulse voltage leak detector,HD-105A coating defect detector,pulse voltage leak detector,HD-105A coating defect detector |
||

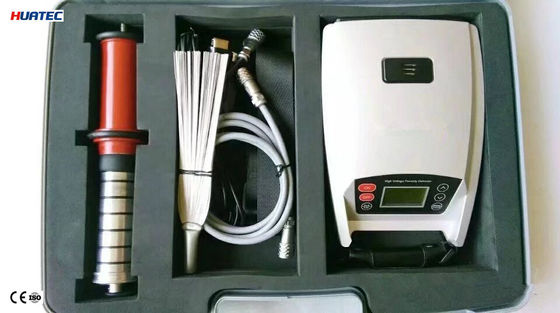

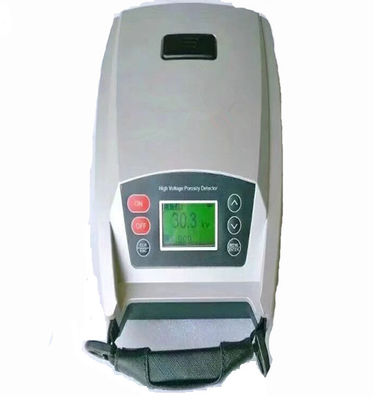

HD-105A Portable Pulse Voltage Holiday Detector for Metal Coating Leak Detection
1.1 What is HD-105A
HD-105A holiday detector is intelligence pulsed high voltage protecting coating quality detector. It install anti-jamming intelligent chip, anti-jamming LED screen and brand new digital control circuit to make a accurately high voltage output ±(0.1KV+3%reading).It can adjust its value of voltage according to the thickness of protecting coating. HD-105A use lithium battery for power source, it is also can be used in field.
1.2 Theory
When high voltage probe brushed pass non conductive coating, If the coating is too thin or metal has leakage or pinhole, the air gap will be punctured and produce spark discharge when pulse high voltage. At same time, detector will record leak number.
1.3 What it can be used on?
The equipment design of HD-105A is advanced, stable and reliable, which can be widely used in chemical industry, oil, rubber and enamel, so it is an essential tool used to detect metal anti-corrosion coating quality.
Parameter
| Test voltage range | 1KV～50KV |
| Thickness range | 0.1～35mm |
| High voltage output | Pulse |
| Voltage display | 3 digit |
| Resolution | 0.1KV |
| Voltage precision | ±(0.1kv+3%) |
| Max leak record | 999 maximum |
| Way of alarming | Headphone buzzer and light |
| Shutdown | Auto and Manual |
| Display | 128*64 LED screen with backlight |
| Power | ≤6W |
| Size | 240mm*165mm*85mm |
| Battery | 12V 4400mA |
| Working time | ≥12 hours(Max voltage) |
| Charging time | ≈4.5 hours |
| Voltage of adapter | Input AC 100-240V Output 12.6V 1A |
| Probe wire | Close to 1.5m |
| Earth lead wire | 2*5m black/black |
| Fuse | 1A |
