تفاصيل المنتج:
|
| مصدر الضوء: | نظام إضاءة CORA العاكس (مصباح هالوجين 12V50W) مع سطوع قابل للتعديل | نطاق تعديل المسافة بين المستخدمين: | 54-75mm |
|---|---|---|---|
| دقة التعديل غرامة: | 0.002 مم | سكتة دماغية: | 38 ملم |
| الجهد العريض: | 100 فولت-240 فولت | حجم منصة ثابتة: | 160 مم × 250 مم |
| إبراز: | trinocular inverted metallurgical microscope,metallurgical microscope with image analysis,professional inverted microscope with warranty,metallurgical microscope with image analysis,professional inverted microscope with warranty |
||

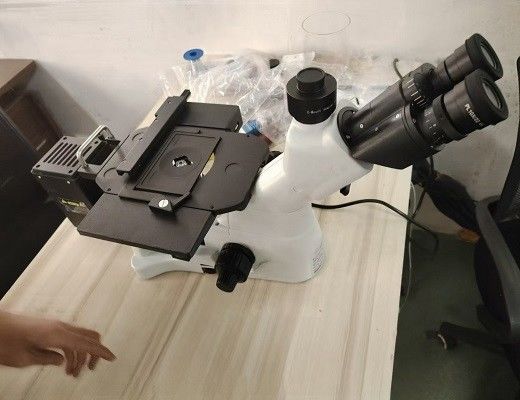

HM-41X Professional Trinocular Inverted Metallurgical Microscope with Image Analysis System
1.Product introduction
The microscope employs a semi achromatic objective lens and an unlimited chromatic aberration correction optical system. The image quality is equivalent to that of an imported microscope. It is one of the best microscopes in the domestic metallographic microscope.
1. total magnification: 50-500 times
2. optical system: infinite color correction optical system (CSIS), better image quality, higher resolution, more comfortable observation;
3. objective lens: unlimited and ultra long distance professional metallographic objective
50 times and 100 times the objective lens is a semi compound achromatic objective, and the image sharpness is greatly improved
4. eyepiece: high focus, ultra wide field of view, flat eyepiece, PL10x/22mm, to provide more spacious and flat observation space, and can be added to measure the various micrometer ruler;
5. observation cylinder: hinge type three eyes, adjustable visibility, 45 degrees tilt, you can take pictures, to observe the image acquisition and storage, configuration of computers and professional software to achieve image analysis;
6.: a fine and coarse focusing mechanism, coaxial focusing mechanism, with a coarse adjusting device, coarse per trip 38mm, 0.002mm precision trimmer;
7. lighting system: reflector type illuminator with variable aperture and center adjustable field of view, adaptive 90V-240V wide voltage, 12V50W imported halogen lamp, effectively protect and prolong the service life of halogen bulb;
8. The stage: the installation of coaxial underhand moving ruler and adjustment stage extension plate, expand the application space, to meet the different needs of customers.
2.Technical specifications

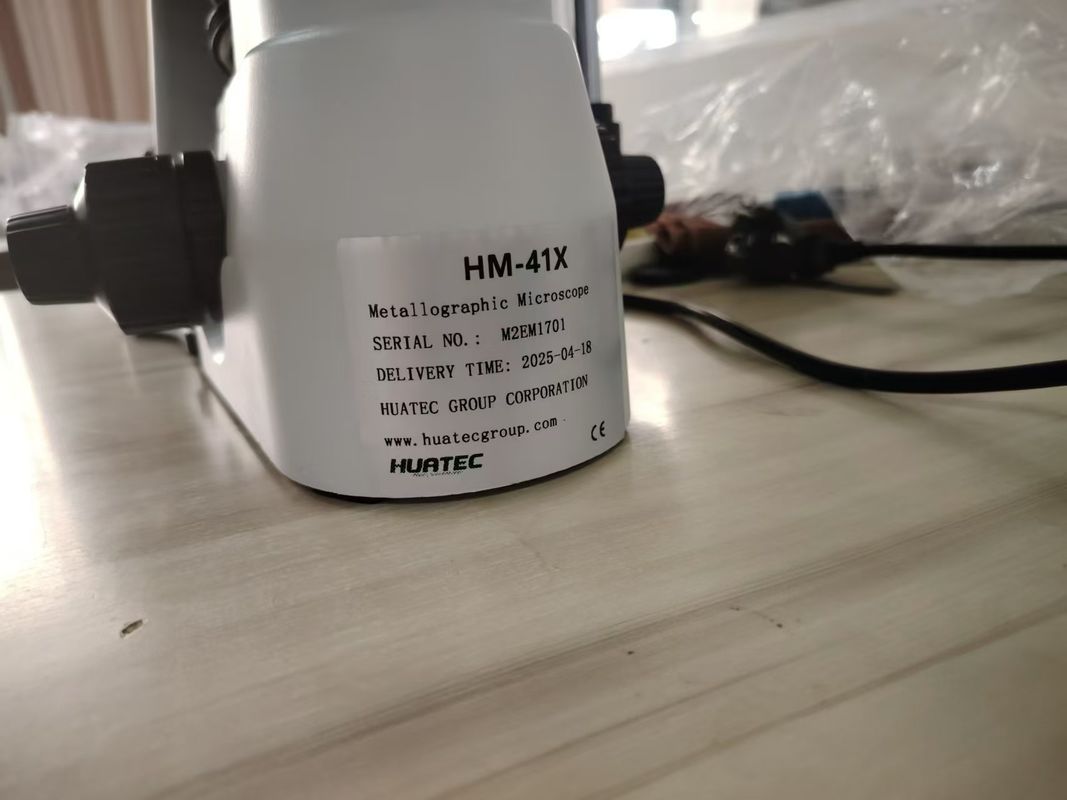

| Product name and model | Metallographic microscope HM-41X | |
|
Component configuration and specifications |
Specification description | quantity |
| High point large flat field eyepiece PL10X/22mm | pair 1 | |
|
The three eye body, three eye observation tube, observation and photography light than 8:2,45 DEG tilt, interpupillary distance adjustment range: 54-75mm; Under a coaxial focusing mechanism. Stroke 38mm, fine adjustment accuracy 0.002mm. Adjusting elastic device for preventing slipping. Five hole converter with reflex iris and center adjustable field aperture reflector type illuminator. 12V50W halogen lamp center adjustable, wide voltage 100V-240V adaptive, brightness adjustable continuously. Fixed platform size: 160mmX250mm. |
1 set | |
| Infinitely long working distance flat field achromatic objective lens 5XLMPL5X/0.15WD10.8mm | 1 | |
| Infinitely long working distance, flat field, achromatic optical objective, 10XLMPL10X/0.3, WD10mm | 1 | |
| Infinitely long working distance, flat field, achromatic optical objective, 20XLMPL20X/0.45, WD4mm | 1 | |
| Infinitely long working distance, flat field, half recombination, metallurgical objective, 50XLMPL50X/0.55WD7.8mm | 1 | |
| Infinitely long working distance, flat field, half recombination, metallurgical objective, 100XLMPL100X/0.80, WD2.1mm (can be matched) | Without | |
| 12V50W halogen lamp room, the center of the filament is adjustable, the focal length is adjustable. | 1 set | |
| Metal pallet (center bore diameter 12mm) | 1 block | |
| Mechanical moving ruler, stroke 120 (X) *78 (Y) mm | 1 set | |
| Rectangular platform | 1 block | |
| Platform extension | 1 block | |
| Polarizer | 1 block | |
| The polarizer insert can be rotated at 360 degrees | 1 block | |
| Color filter (blue, green) | 1 block | |
| 1/2CTV (0.5X), C interface, adjustable focus | 1 | |
| Rate | 50X, 100X, 200X, 500X adjustable (standard configuration 10X eyepiece) | |
| light source | Reflective Cora lighting system (12V50W halogen lamp) with adjustable brightness | |
3.Accessories
