تفاصيل المنتج:
|
| يتراوح: | 0 ~ 1300um 0 ~ 51.2 مل | دقة: | ±(2.5%+1um) ±(2.5%+0.04 مل) |
|---|---|---|---|
| دقة: | 0.1 ميكرومتر/0.01 مل | معايرة: | النقاط: صفر/50/100/250/500/1000um |
| بيئة التشغيل: | درجة الحرارة: 0 ~ 40 درجة مئوية (32 ~ 104 درجة فهرنهايت) الرطوبة: 20% ~ 90% رطوبة نسبية | ||
| إبراز: | digital coating thickness gauge,coating thickness gauge with probe,F&NF probe thickness meter,coating thickness gauge with probe,F&NF probe thickness meter |
||

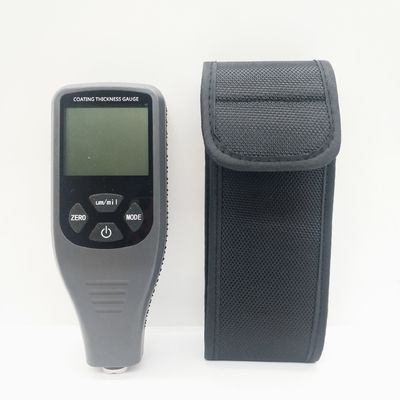

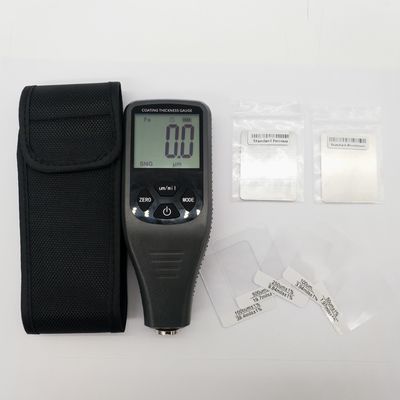

TG1956 Digital Coating Thickness Gauge 0~1300um F&NF Probe Auto Recognition
Built-in Black Light
Integral Probe F&NF, Auto detecting attribute of substrates
Nice shell design for easy reading
Built-in Silicone Slip Strip
Measurement Range: 0~1300um
Accuracy: ±(2.5%+1um)
Resolution: 0.1um
Zero Calibration and 50/100/250/500/1000um Calibration Points
5 minutes auto power off to saving power
Power Supply: 4 x AAA batteries
Operating Temperature: 0 to 40℃ (32 to 104℉)
Size: 155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)
Weight: 125g (4.41 oz)
Technical specifications
| Probe F | Probe N | |
| Principle | Magnetic Induction | Eddy Current |
| Range |
0~1300um 0~51.2mil |
0~1300um 0~51.2mil |
| Accuracy |
±(2.5%+1um) ±(2.5%+0.04mil) |
±(2.5%+1um) ±(2.5%+0.04mil) |
| Resolution | 0.1um/0.01mil | 0.1um/0.01mil |
| Calibration | Points: ZERO/50/100/250/500/1000um | |
| Units | um, mil | |
| minimum curvature radius convex: 1.5mm | ||
| minimum curvature radius concave: 25mm | ||
| minimum measuring area: Diameter 6mm | ||
| minimum thickness of substrate | 0.5mm(0.02”) | 0.3mm(0.012”) |
| Power | 4 x AAA batteries | |
| Operation Environment | Temperature:0~40℃(32~104℉) Humidity:20%~90%RH | |
| Size |
155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”) |
|
| Weight | 125g(4.41oz) | |
