SRT-6671 High Precision Surface Roughness Meter with SD Card Storage & Multiple Sensors

SRT-6671 High Precision Surface Roughness Meter with SD Card Storage & Multiple Sensors

Instrument Features

● ARM processor for control and data processing, fast speed, low power consumption;

● Software transplant real-time operating system, support multi-task parallel processing;

● Large range, multi parameters: Ra, Rz, Rq, Rt, Rp, Rv, R3z and other 13 parameters;

● 128*64 high brightness OLED display, self-lighting, wide temperature, full Angle of view；

● Display rich information, intuitive, can display all parameters and graphics;

● Compatible with ISO, DIN, ANSI, JIS national standards;

● Built-in rechargeable lithium battery, can display charging process instructions, the operator can know the charging degree at any time;

● With the remaining battery indicator icon, prompt users to charge in time;

● Large capacity data storage, the machine FLASH can store 200 groups of original data and waveform;

● Scalable Micro SD card storage, up to 16G;

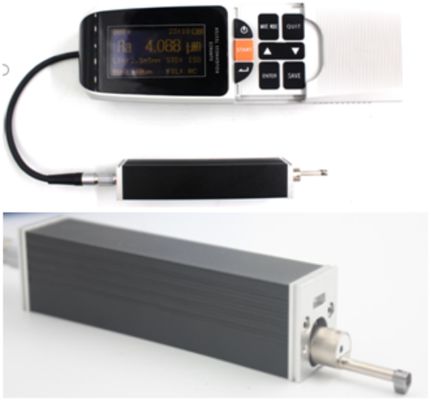

● Compatible with a variety of sensors: standard sensor, small hole sensor, groove sensor, deep groove sensor;

● Optimized the sensor structure, the measured value is more stable;

● Using USB interface, can connect computer and printer, can realize embedded software online upgrade.

Technical Parameters

Host machine

Sensor

Applied range:

SRT-6671 widely used in machining, aerospace, auto parts, communications, electric power, electronics and other industries. It is also suitable for universities, scientific research institutes, technical supervision bureau, special prosecutor's court and so on.

Standard Configuration

Optional attachment

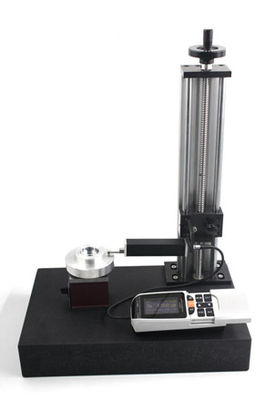

Roughness meter measuring marble platform

• The screw rod is lifted and lowered, and the V-groove is set on the platform to measure the workpiece with smaller shape, which can improve the measurement accuracy.
• Granite platform size : 350mm × 195mm × 340mm
• Vertical lifting height : 300 ± 1mm
• Up and down return error : ≤ hand wheel rotation 1 / 6 circle
• Weight : 10Kg

Roughness meter measuring cast iron platform

• Lifting height : 300 ± 1 mm ;
• Return error : not more than 1 / 6 of the handwheel ;
• measurement platform size : 340 mm × 180 mm × 20 mm.

BT printer

Optional 58mm thermal printer for easy printing of measurement results.

Standard Sensor
