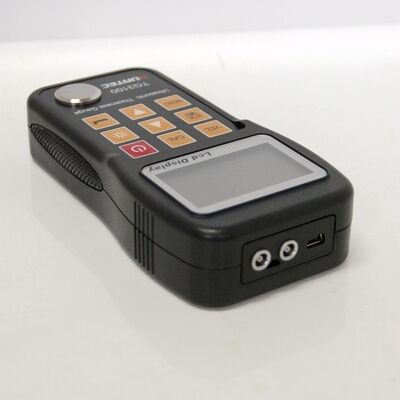

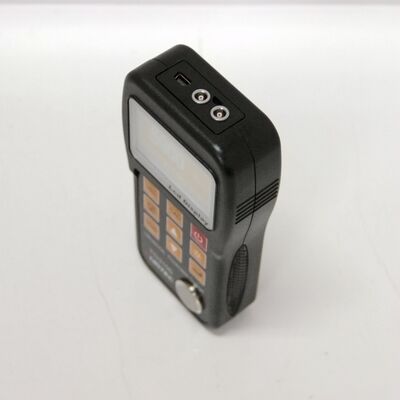

Portable Ultrasonic Thickness Gauge Range 0.75-300mm PC Software Included

Portable Ultrasonic Thickness Gauge Range 0.75-300mm PC Software Included

Features
1.Capable of performing measurements on a wide range of material, including metals, plastic, ceramics,
composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2.Transducer models are available for special application, including for coarse grain material and high
temperature applications.
3.Two-Point Calibration function.
4.Two work modes: Single point mode and Scan mode.
5.Coupling status indicator showing the coupling status.
6.Optional software to process the memory data on the PC.
7.Optional thermal mini-printer to print the measured data via RS232 port.

Specifications
1.Display:4.5 digits LCD with EL backlight.
2.Measuring Range:0.75～300mm (in Steel).
3.Sound Velocity Range: 1000~9999 m/s.
4.Resolution: 0.1/0.01mm
5.Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and conditions
6.Units: Metric/Imperial unit selectable.
7.Four measurements readings per second for single point measurement, and ten per second for Scan
Mode.
8.Memory for up to 20 files (up to 99 values for each file) of stored values.
9.Power Source:Two AA size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).
10.Communication:RS232 serial port.

11.Outline dimensions:150×74×32 mm.
12.Weight:245g

Selecting probes

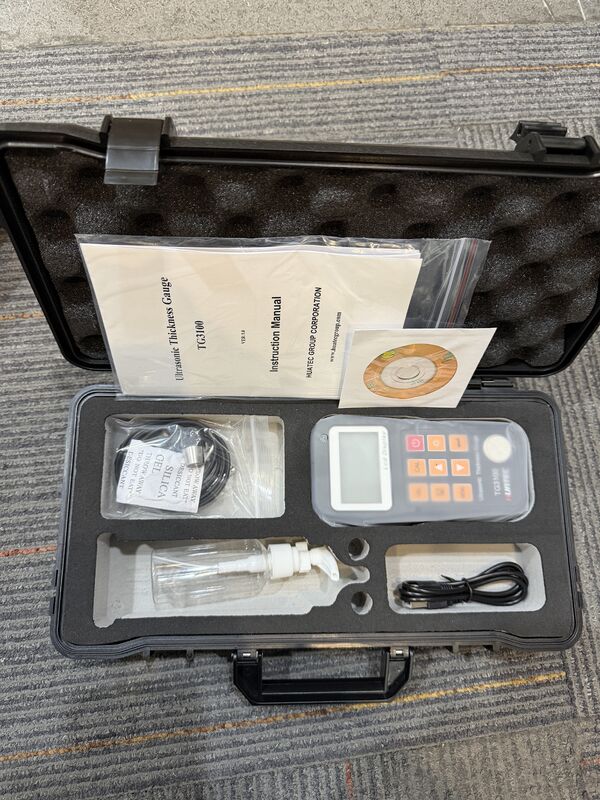

Configuration
