تفاصيل المنتج:
|
| درجة حرارة العمل: | -10 ~ +40 درجة مئوية | درجة حرارة التخزين: | -20 ~ 50 درجة مئوية |
|---|---|---|---|
| الرطوبة النسبية: | <80% عدم التكثيف | تباعد القطب: | 0 ~ 210 ملم |
| الحد الأقصى الحالي: | 2.8 أ | الحد الأدنى من قوة رفع التيار المتردد: | > 4.5 كجم (44 نيوتن) |
| إبراز: | AC electromagnetic yoke for magnetic testing,Waterproof magnetic particle testing yoke,Ergonomic grip electromagnetic yoke,Waterproof magnetic particle testing yoke,Ergonomic grip electromagnetic yoke |
||

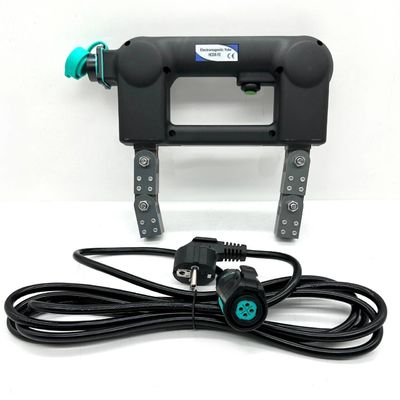

HCDX-Y2 AC Electromagnetic Yoke with Ergonomic Grip IP54 Waterproof for Magnetic Particle Testing
Oerview
The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.
Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.
A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.
Parameters index
Product features
Sealed, durable construction
Chemical and abrasion resistant
AC operation for surface and sub-surface inspection
Exceeds ASTM lifting specifications
The DC magnetizing power supply (DC battery pack) can be used to realize the DC magnetization function.
When the lifting force is not enough, the power is automatically cut off to ensure the sensitivity of flaw detection.
The power display function can display the current battery power, and has the function of sound and light alarm.
Built in microcomputer chip to stabilize output voltage and ensure detection sensitivity.
Adjustable magnetization
Special working waist bag can carry battery pack, magnetic suspension, contrast agent, yoke probe, etc.
Technical parameter
Working temperature: -10 ~ +40 C
Storage temperature: -20 ~ 50 C
Relative humidity: <80% non condensation
Work temperature rise: <18 C
Temporary load rate: >50%
Sensitivity: A1 standard test piece 15/50 groove clearly displayed.
AC minimum power hoisting power: >4.5kg (44N)
Electrode spacing: 0～210mm
Maximum current: 2.8A
Weight: 2.6kg
Standard configuration:
HCDX-Y2
Yoke
Power cord
Calibration certificate
Warranty card
Carrying case
