تفاصيل المنتج:
|
| حساسية: | أ1-15/100 | وزن الرفع: | ≥50n |
|---|---|---|---|
| مساحة الساق: | 15-200 ملم | شدة إضاءة الضوء الأبيض: | ≥3000 لوكس |
| شدة الإضاءة للأشعة فوق البنفسجية: | ≥4000 ميكروواط/سم2 | سعة البطارية: | 2×55WH، تعمل بشكل متواصل لمدة 12 ساعة بعد الشحن |
| إبراز: | lightweight magnetic yoke NDT inspection,integrated magnetic yoke UV light,NDT inspection yoke white light,integrated magnetic yoke UV light,NDT inspection yoke white light |
||

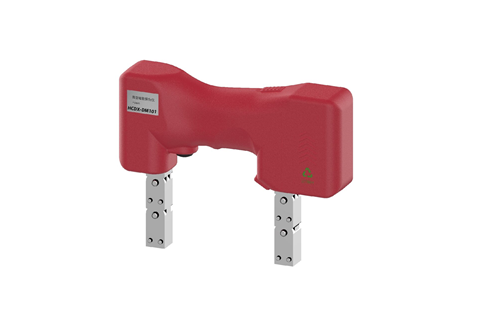

HCDX-DM101 Lightweight Integrated Magnetic Yoke with UV & White Light for NDT Inspection
HCDX-DM101 rechargeable miniature magnetic yoke integrated machine is a brand new concept product which we have studied with great concentration for many years and built with great care, with independent intellectual property rights.
It is different from the traditional magnetic particle flaw detection machine, without external power supply, without any connection lines, get rid of only ~220V/50Hz power supply or mobile power supply can work history. Small and exquisite, easy to carry. Widely used in aerospace, petrochemical, electric power water conservancy, railway construction and other industries, especially suitable for special equipment inspection and testing, greatly improve the inspection efficiency.
Technical parameters
|
Lift weight |
≥50N |
|
Sensitivity |
A1-15/100 |
|
Leg space |
15-200mm |
|
Intensity of illumination of white light |
≥3000LUX |
|
Intensity of illumination of UV light |
≥4000µW/cm2 |
|
Size |
210×160×45mm |
|
Weight |
1.5 kg |
|
Battery capacity |
2×55WH,continuously working 12 hours after charging |
Product features:
Unique constant magnetic control, high energy battery from full electricity to run out, output constant magnetic field, ensure the detection power density and the lifting force;
Temporary load rate 100%, can be continuous magnetization, no fever, stable and reliable;
Integration design: the micro magnetic yoke, control circuit, battery, uv light illumination integration;
LED uv/white combination, can be used for ordinary magnetic particle testing, can also be used for fluorescent magnetic particle testing, and do not need any outside lighting
Equipped with backup battery, according to the amount, can change at any time; convenient, safe and worry-free;
Intelligent detection work status, don't work for a long time, device will automatically enter a dormant state;
Real-time energy monitoring, power is too low, automatic cut off power supply;
High-energy battery intelligent charging management module, safe and reliable;
High strength shell material, impact resistance, abrasion resistance, prevent ageing.
Ergonomics and waterproof design, the weight only 1.5 kg (including battery), light, comfortable, use safe.
Standard package:
Main unit HCDX-DM101 ………………………………….……….1pc
Fillet weld removable joints …………………………..………….1pair
Rechargeable battery …………………………………………….1pc
Battery charger ……………………………………….….…….….1pc
Special tools…………………………………………………….….1pc
Soft bag …………………………………………………………….1pc
Carrying case ………………..………………………….………...1pc
Instruction manual………………..……………………………......1pc
Calibration certificate………………..……………………………..1pc
Warranty card………………..………………….……………........1pc
