تفاصيل المنتج:
|
| مقياس الصلابة: | HL، HB، HRB، HRC، HRA، HV، HS | ذاكرة: | 48～600 مجموعة (أوقات التأثير: 32～1) |
|---|---|---|---|
| نطاق القياس: | HLD ((170?? 960) | دقة: | خطأ ±6HLD (760±30HLD) في القيمة المعروضة تكرار تكرار 6HLD (760±30HLD) للقيمة المعروضة |
| دقيقة. نصف قطر قطعة العمل (محدبة / مقعرة): | Rmin = 50 مم (مع حلقة دعم خاصة Rmin = 10 مم) | الحد الأدنى لوزن قطعة العمل: | 2 ~ 5 كجم على دعم ثابت 0.05 ~ 2 كجم مع أداة توصيل مدمجة |
| دقيقة. سمك السطح المتصلب: | 0.8 ملم | ||
| إبراز: | automatic hardness tester for large workpieces,hardness tester for narrow space inspection,non-destructive testing equipment with warranty,hardness tester for narrow space inspection,non-destructive testing equipment with warranty |
||

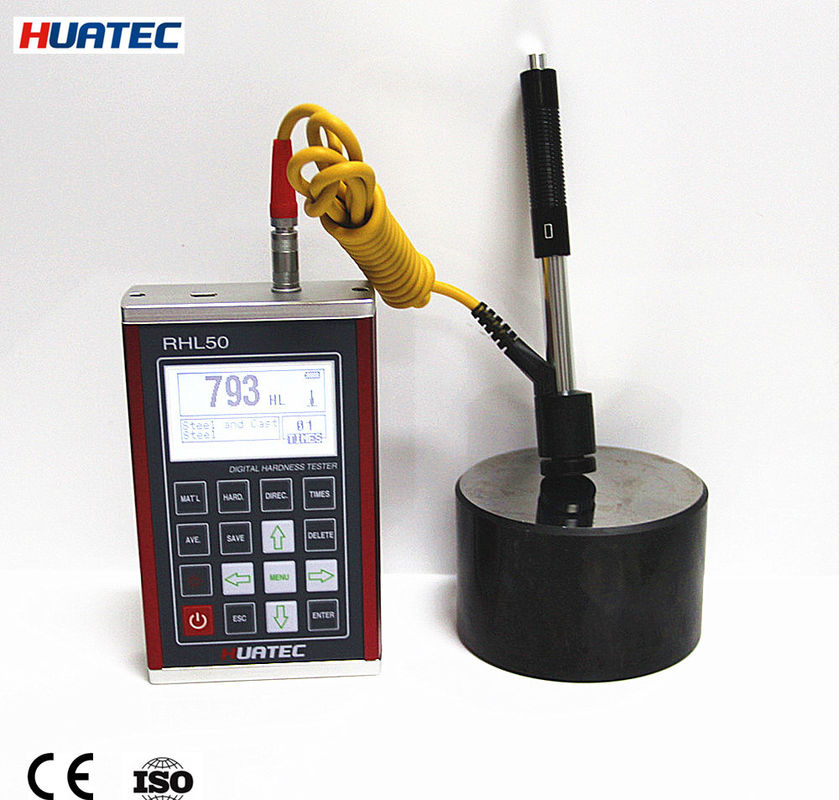

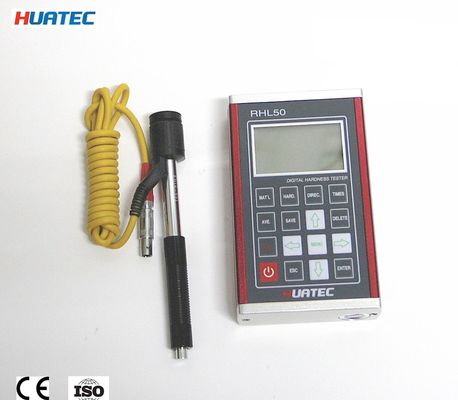

RHL50 Automatic Identification Hardness Tester for Large Workpiece & Narrow Space Inspection
Features
LCD display of 128×64 matrix with back-light, showing all functions and parameters.
Converts to all common hardness scales (HV,HB,HRC,HRB,HRA,HS).
English displaying and easy and convenient menu operation.
Powerful PC Software available and USB 2.0 interface.
7 types of Impact Device optional, which don't need to be recalibrated when changing them.
Memory of 600 groups data(impact times:32～1).
Lower limit setting and sound alarm.
Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is
used to measure “cast steel” work piece.
Printer be separated from main unit and copies of testing results can be printed as required.
In-built Smart Li lon rechargeable battery while USB connected and charging controlling circuit.
Inbuilt function of Software Calibration.
Two ways of switching off by key and automatically
Specifications
| Hardness scale | HL, HB, HRB, HRC, HRA, HV, HS |
| Memory | 48～600 groups (impact times: 32～1) |
| Measuring range | HLD(170～960) |
| Accuracy | ±6HLD (760±30HLD) error of displayed value 6HLD (760±30HLD) repeatability of displayed value |
| Standard Impact Device | D |
| Optional Impact Devices | DC/D+15/G/C/DL |
| Max. Work piece Hardness | 996HV(For Impact Devices D/DC/DL/D+15/C) 646HB(For Impact Device G) |
| Min. Radius of Work piece (convex/concave) | Rmin = 50mm (with special support ring Rmin= 10mm) |
| Min. Workpiece weight | 2~5kg on stable support 0.05~2kg with compact coupling |
| Min. Workpiece thickness | 5mm (Impact Devices D/DC/DL/D+15) 1mm (Impact Device C) 10mm (Impact Device G) |
| Min. thickness of hardened surface | 0.8mm |
| Power | Rechargeable Li lon battery 3.7V/600mA, 4 years life time |
| Continuous Working time | approx. 100 h (no back light off) |
| Charging time | 2-3.5 h |
| Operating temperature | 0~40℃ |
| Relative humidity | ≤90% |
| Overall dimensions | 152×84×34mm (main unit) |
| Weight | 0.3kg (main unit) |
Main Application
The assembled machinery and permanently installed parts
Die cavity of molds
Heavy work piece
Failure analysis of pressure vessel, steam turbo-generator set and other equipment
Narrow testing space where work piece installed
Bearings and other parts
Cases which require the test result with normalized original recording
Material identification of the metal material warehouse
Quick tests of large range and multipoint measuring positions for heavy workpiece
Standard delivery
●Main unit
●Impact Device type D
●Test block with HLD value
●Charger
●Nylon brush
●Small supporting ring
●Data View Software
●USB&RS232 Communication cable
●Calibration Certificate
●Instruction manual
●Warranty card
●Carrying case
Optional accessories
●Optional Impact Devices DC/D+15/G/C/DL
●Normal and special type support rings (14pcs)
●Other test block (High, medium and low value))
●Printer
●Impact body
●Impact ball tip
●Tools for changing the ball tip
