تفاصيل المنتج:
|
| قطر القالب: | φ30 مم (اختياري φ22 مم، 45 مم) | قوة سخان: | 560 واط |
|---|---|---|---|
| نطاق درجة الحرارة: | 0 ~ 200 درجة مئوية قابل للتعديل | النطاق الزمني: | 0 ~ 30 دقيقة |
| وضع الضغط: | تلقائي (تحميل المحرك) | طريقة التبريد: | تبريد الماء (مبرد اختياري) |
| وضع التشغيل والعرض: | شاشة تعمل باللمس | ||
| إبراز: | PLC-controlled metallographic mounting press,automatic sample inlay machine,metallographic sample preparation equipment,automatic sample inlay machine,metallographic sample preparation equipment |
||

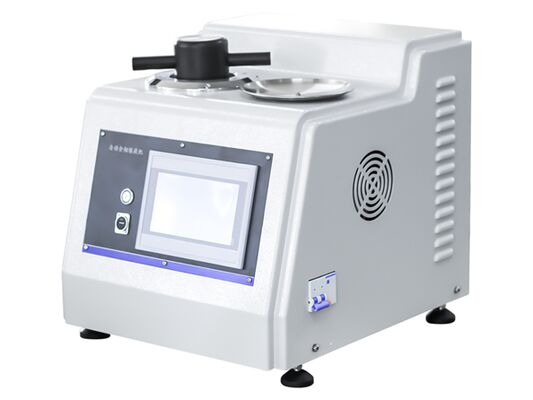

HM-M2000W Fully Automatic Sample Inlay Machine PLC-Controlled Mounting Press for Metallographic Sample Preparation
1. Product features
l Man-machine interface and PLC control, the system is stable and reliable.
l Adopts motor closed loop control to pressure the inlaid material, the pressure is stable and reliable, and the noise is low.
l Efficient heating/cooling system maximizes heat transfer and cooling for fast circulation.Preheating function to maintain constant standby temperature, reduce heating time, shorten sample preparation time.
l Touch screen display operation interface, simple operation, convenient and intuitive parameter setting.
l Built-in storage 99 sets of Mosaic technology (save Mosaic materials and other parameters), you can call one of the process to meet specific requirements.
l One-click start to complete the sample preparation process automatically.
l USB interface, inlay process parameters through U disk import and export.
2. Technical parameters
|
Item |
specifications |
|
φ30mm (optional φ22mm, 45mm) |
|
|
560 w |
|
|
Temperature range |
0 ~ 200℃ adjustable |
|
0 ~ 30 min |
|
|
Automatic (motor loading) |
|
|
Cooling way |
Water cooling (optional chiller) |
|
Touch screen |
|
|
Mounting application |
Editable mounting process library, can store 99 sets of mounting process |
|
Program input/output |
U disk |
|
Working mode |
Automatic and manual can be switched |
|
Total power: |
|
|
Power supply |
AC220V 50HZ |
|
Overall dimensions |
530 * 430 * 410 mm |
|
Weight |
66Kg |
3. Standard accessories
|
Item |
Quantity |
Item |
Quantity |
|
Mounting press (HM1 black) |
1 bottle (500 g) |
Throat hoop (13-19) |
1 |
|
Inlet pipe |
1 |
Teflon tape |
Volume 1 |
|
Outlet pipe |
1 |
Spoon |
1 |
|
Funnel 1.5 cm |
1 |
|
|
|
Product specification |
1 |
Product certificate |
1 |
4. Optional accessories
1. Chiller: The equipment can be cooled automatically without external water source
2. Material:
|
HM1 |
suitable for ordinary sample making Material: phenolic resin Color: black, red, green Packing: 500 g/kg / 2 and 4 kg / 18 kg |
|
HM2 |
suitable for conducting samples, such as electron microscope, electropolishing Material: phenolic resin Color: Black Packing: 500 g/kg / 2 and 4 kg / 18 kg |
|
HM3 |
suitable for samples with high edge requirements: very low shrinkage, tight sample bonding, high hardness, good wear resistance Material: phenolic resin Color: Black Packing: 500 g/kg / 2 and 4 kg / 18 kg |
|
HM4 |
suitable for powder metallurgy and other interstitial samples Material: phenolic resin Color: Red Packing: 500 g/kg / 2 and 4 kg / 18 kg |
|
HM5 |
suitable for samples with requirements on location, size, depth of layer, etc Material: Acrylic resin Color: Transparent Packing: 500 g / 3 kg / 10 kg |
|
HM6 |
suitable for ordinary sample making Material: Color: White Packing: 500 g / 4 kg / 15 kg |
|
HM7 |
suitable for samples that need to be recovered and the location, size and depth of layer are required Material: Acrylic resin Color: Soluble and transparent Packing: 500 g / 3 kg / 10 kg |
|
CLIP3 |
The sample holder is suitable for vertical elevation of the sample to observe the profile Material: stainless steel Packing: 100 PCS/box |
|
MMR |
Mold release agent is suitable for sample mold release Packaging: 420ml/ bottle |
|
MMR2 |
Mold release agent is suitable for sample mold release Packaging: 420ml/ bottle 200 ml/bottle packaging |

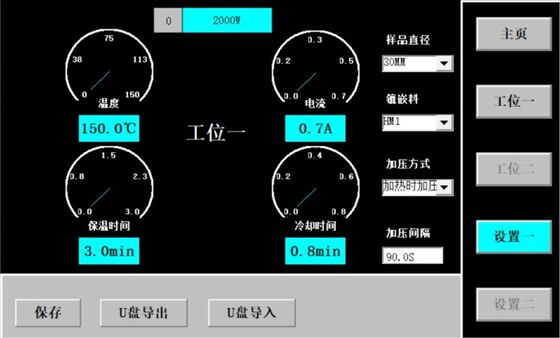

5.Touch screen interface
