تفاصيل المنتج:
|
| مزود الطاقة: | تيار متردد 220 فولت ± 10% 50 هرتز 5 أمبير | سرعة التفتيش: | ≥6 م/دقيقة |
|---|---|---|---|
| وقت الفجوة: | ≥5 ثواني | الإخراج: | التيار المتناوب 38 فولت 10 أمبير |
| ارتفاع درجة حرارة المسبار: | ≥60 درجة مئوية | مغنطة الوقت: | ≤3 ثواني |
| قوة الرفع: | تيار متردد ≥ 4.5 كجم تيار مستمر ≥ 18 كجم | المسافة القطبية: | 20-160 ملم (قابل للتعديل) |
| إبراز: | composite magnetic particle flaw detector,multifunctional flaw detector with probes,non-destructive testing equipment with warranty,multifunctional flaw detector with probes,non-destructive testing equipment with warranty |
||

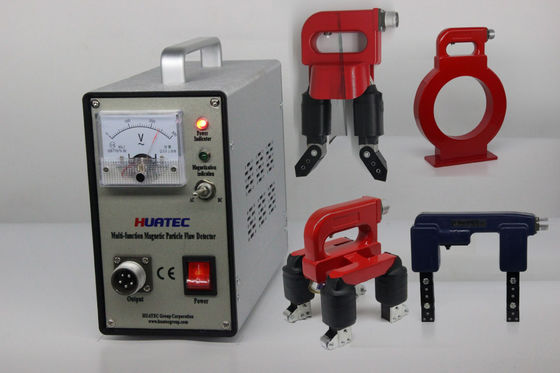

HCDX-A Composite Multifunctional Magnetic Particle Flaw Detector with Multi-Probe A/D/E/O Optional
Introduction:
HCDX-A composite magnetic powder flaw detector adopts silicon controlled contactless switch, with low noise, strong magnetic force, long service life and simple operation, suitable for field and laboratory use. The instrument adopts combined configuration, and users can choose probe freely according to their needs. Type A, D, E, O probe can be configured according to user requirements.
All optional probes parameters:
|
D type probe |
Lifting force: AC≥5Kg DC≥18Kg (no joints) Pole distance: 50-200mm (adjustable) Operating current: ≥8A Working voltage: AC=38V, DC=9V Weight: 2.5 Kg |
|
Ａtype probe |
Lifting force: AC≥ 4.5kg DC≥18Kg Pole distance: 20-160mm (adjustable) Working voltage: AC=38V, DC=9V Weight: 2.0 Kg |
|
Ｏtype probe |
Central magnetic intensity: 180Oe Working voltage: AC=38V Inside diameter: 150 mm Weight: 2.5 Kg |
|
Ｅtype probe |
Lifting force: ≥12Kg Distance: 110 mm Operating current: ≥7A Inspection speed: 6 m/min Working voltage: 38 v left, 2 Weight: 3.0 Kg |
Application:
Mainly used to detect surface and near surface cracks of ferromagnetic workpiece.
Boiler pressure vessel, steel structure, forgings, castings, welding parts, machined parts, etc.
The standard probes introduction for model HCDX-A:
Type A probe (horseshoe probe): suitable for all kinds of fillet weld, large workpiece inside and outside corners of local magnetization inspection, equipped with working lights.
Technical parameters:
Power supply: AC 220V ± 10% 50HZ 5A
Output: AC 38V 10A
Type A.D.E.O probes are optional and available
Inspection speed: ≥6 m/min
Temperature rise of probe: ≤60℃
Working beat: it is recommended to work for a long period of continuous operation: magnetizing time ≤3 seconds, gap time ≥5 seconds
Weight: about 6.5Kg (main unit)
Standard delivery:
Host HCDX-A 1
Type A probe 1
The power line 1
The probe line 1
Standard specimen 1
Operation manual 1
Certificate 1
Optional accessories:
Type A probe
O the probe
E probe
D probe
Dead weight
Test specimen
UV light
