تفاصيل المنتج:
|
| معيار: | ISO 2409-1974 ، GB/T9286-98 | قواطع متعددة: | 1 ملم، 2 ملم، 3 ملم |
|---|---|---|---|
| إبراز: | 1mm cross hatch cutter,coating adhesion test blade,multi-blade non-destructive tester,coating adhesion test blade,multi-blade non-destructive tester |
||
| Standard | ISO 2409-1974, GB/T9286-98 |
|---|---|
| Multi-blade Cutters | 1mm, 2mm, and 3mm |

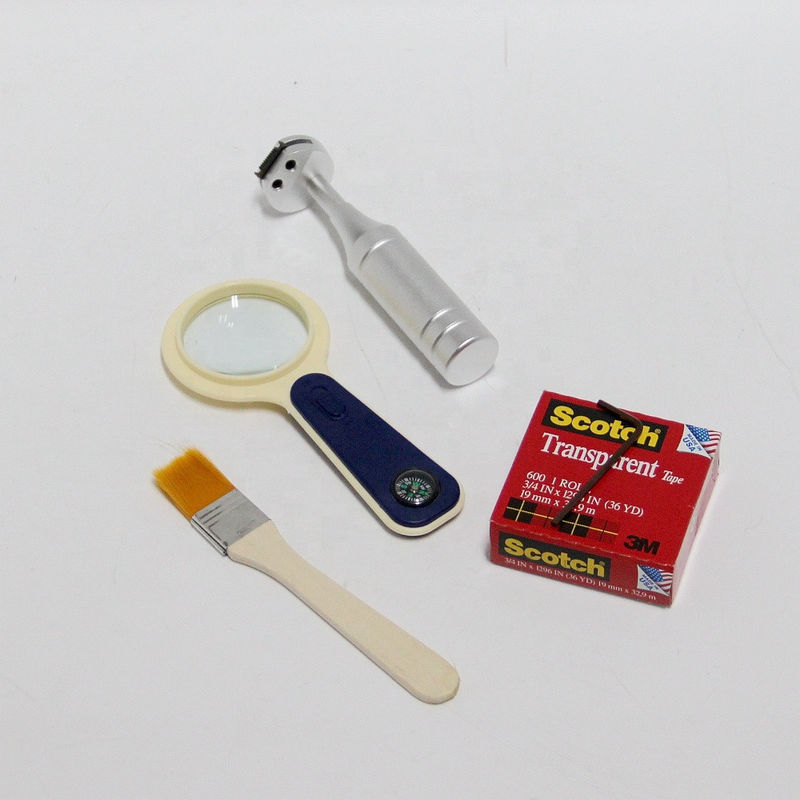

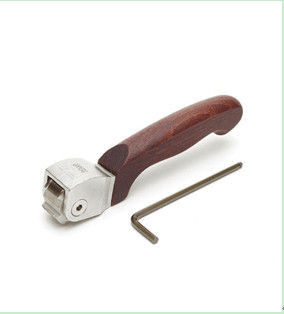

The Cross Hatch Cutter is designed and manufactured in accordance with ISO 2409-1974 and complies with GB/T9286-98 standard. This instrument is primarily used for measuring the grid scratching adhesion of organic paints. Suitable for both laboratory use and various construction site conditions.
Available in three specifications of multi-blade cutters (1mm, 2mm, and 3mm) to accommodate different test conditions:
| No | Standard | Knife Edge | Knife | Knife Distance |
|---|---|---|---|---|
| H-5125 | DIN/ISO | 6 | 1 | 1mm (0.04inch) |
| H-5126 | DIN/ISO | 6 | 1 | 2mm (0.08inch) |
| H-5128 | DIN/ISO | 6 | 1 | 3mm (0.12ch) |
| H-5129 | ASTM | 11 | 1 | 1mm (0.04ch) |
| H-5130 | ASTM | 11 | 1 | 1mm (0.04ch) & 2mm two knifes changeable |
| H-5131 | ASTM | 11 | 1 | 1mm (0.04ch) & 2mm & 3mm three knifes changeable |
| H-5132 | DIN/ISO | 6 | 1 | 1mm (0.04inch) & 2mm two knifes changeable |
| H-5133 | DIN/ISO | 6 | 1 | 1mm (0.04inch) & 2mm & 3mm three knifes changeable |
