تفاصيل المنتج:
|
| المعايير: | EN462-5 وASTM E2002 اختياري | 1D إلى 3D: | سلك التنغستن (W) (النقاء ≥ 99.90%) |
|---|---|---|---|
| 4D إلى 13D: | سلك بلاتيني (Pt) (نقاوة ≥ 99.95%) | ||
| إبراز: | Double Wire Image Quality Indicator,Tungsten Platinum Wire NDT Equipment,Non Destructive Testing Wire Indicator,Tungsten Platinum Wire NDT Equipment,Non Destructive Testing Wire Indicator |
||
Double Wire Image Quality Indicator Tungsten Platinum Wire

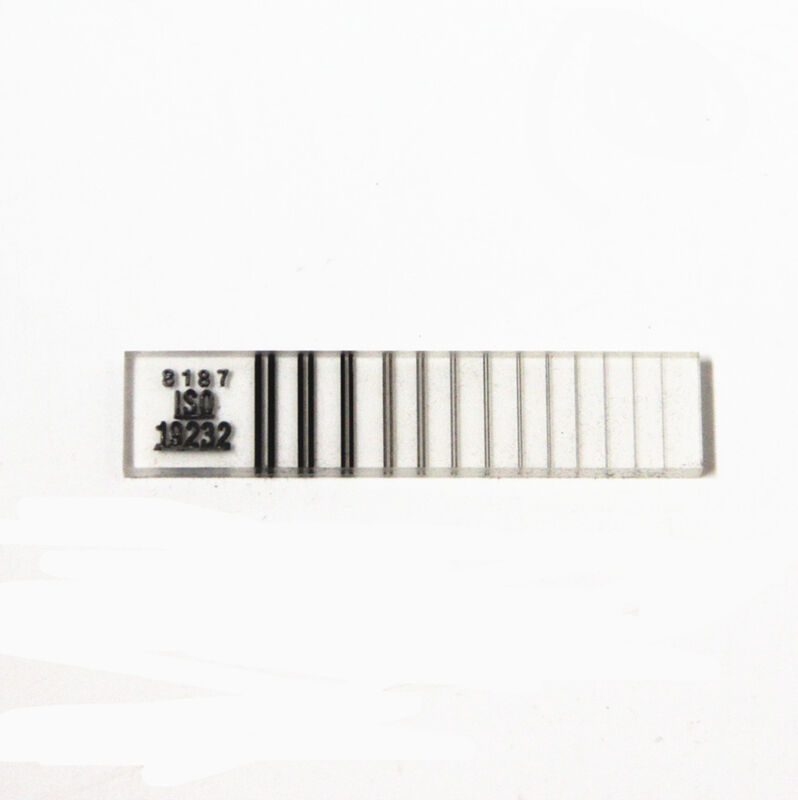

The dual-wire IQI employs 13 sets of precise tungsten-platinum wires to achieve the imaging limit of "clear → unclear", directly quantifying the total image blurriness (U = 2d) and spatial resolution (SRb = d) of the radiographic images. It is the gold standard tool for evaluating the performance of NDT imaging systems.
Standards: EN462-5 and ASTM E2002 optional
|
Wire |
Nominal Wire Dia. |
Wire Dia. left |
Distance |
Wire Dia. right |
|
1D |
0.800 ± 0.020 |
0.800 |
0.798 |
0.804 |
|
2D |
0.630 ± 0.020 |
0.632 |
0.635 |
0.633 |
|
3D |
0.500 ± 0.020 |
0.502 |
0.506 |
0.504 |
|
4D |
0.400 ± 0.010 |
0.401 |
0.403 |
0.401 |
|
5D |
0.320 ± 0.010 |
0.323 |
0.321 |
0.320 |
|
6D |
0.250 ± 0.010 |
0.252 |
0.255 |
0.253 |
|
7D |
0.200 ± 0.010 |
0.200 |
0.199 |
0.202 |
|
8D |
0.160 ± 0.010 |
0.163 |
0.161 |
0.164 |
|
9D |
0.130 ± 0.005 |
0.130 |
0.134 |
0.128 |
|
10D |
0.100 ± 0.005 |
0.097 |
0.102 |
0.099 |
|
11D |
0.080 ± 0.005 |
0.080 |
0.082 |
0.079 |
|
12D |
0.063 ± 0.005 |
0.064 |
0.062 |
0.065 |
|
13D |
0.050 ± 0.005 |
0.049 |
0.052 |
0.051 |
13 groups of double wires (1D to 13D): The diameter decreases from 0.80mm (1D) to 0.05mm (13D).
1D to 3D: **Tungsten (W)** wire (purity ≥ 99.90%)
4D to 13D: **Platinum (Pt)** wire (purity ≥ 99.95%)
Key design: Wire spacing = Wire diameter (d)

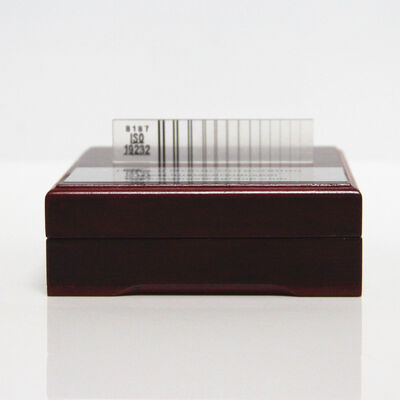

Packaging: Embedded in a low-absorption plastic substrate to ensure the parallelism and precise spacing of the wire pairs.
