تفاصيل المنتج:
|
| اسم المنتج: | عارض الفيلم | منطقة المشاهدة: | 400x100 ملم |
|---|---|---|---|
| عرض بسهولة: | >4. 0 الكثافة | وضع التحكم: | دليل + مفتاح القدم |
| إبراز: | Large LED film viewer for NDT,400x100mm LED film viewer,Non-destructive testing film viewer,400x100mm LED film viewer,Non-destructive testing film viewer |
||

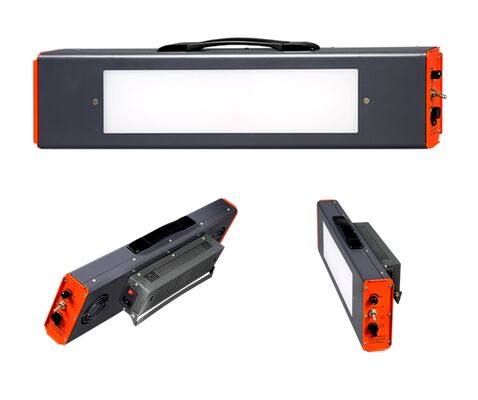

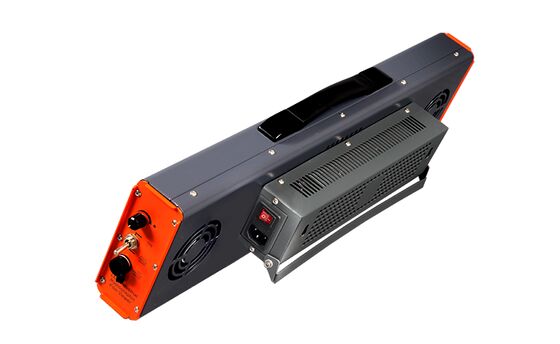

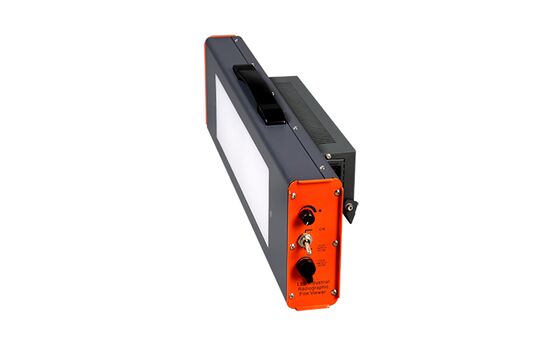

Large Size LED Film Viewer Technology with 400x100mm Viewing Area and Usage
Features:
New design: Highly reliable and innovative, optimized right-side Panel control
Viewing area: 400x100mm
Easily View＞4. 0 Density
Pure White LED Light
50,000 Hour Lamp Life
Low Power Consumption
Fan cooling
Control mode: Manual+Foot-switch
Design: Modern, Stylish and Simple
Mask size: 24x10cm, 24x6cm, 40x6cm optional
Specifications:
|
Adapter Input voltage |
85-264VAC/47-60Hz Power: 200W |
|
Maximum Light Intensity |
>100,000 Cd/㎡ |
|
Film density |
>4.0D According to the inspection report |
|
Surface temperature |
<18°Celsius Continuous operation for 24 hours) |
|
Uniform Viewing Area |
95% Full Screen |
|
Dimmer Control |
0% to 100% continuous |
|
Control mode |
Manual + Foot-switch |
|
Cooling Method |
Forced air cooling |
|
Dimensions |
610x155x60+50mm (L*W*H) |
|
Viewer window |
400mm*10mm (L*W) |
|
Viewing-mask window |
24x10cm, 24x6cm, 40x6cm (L*W) optional |
|
Power |
200W |
|
Weight |
5.8 KG |
Package Contents:
LED viewer with densitometer HFV-4010P 1pc
Foot switch 1pc
AC power cord 1pc
Viewing mask 1pc
Magnetic film holder 2pcs
Magnetic ruler 1pc
User's manual 1pc
Calibration certificate 1pc
Trouble Cause of the fault:
The power light is not on Elimination method: Check the power switch (8) to see if it is on the position of the foot switch, if is, should use in the foot switch mode. Check the lightness adjustment knob on the right-side control penal to see if it is on the minimum position, it is, should turn it to the proper lightness in the clockwise.
