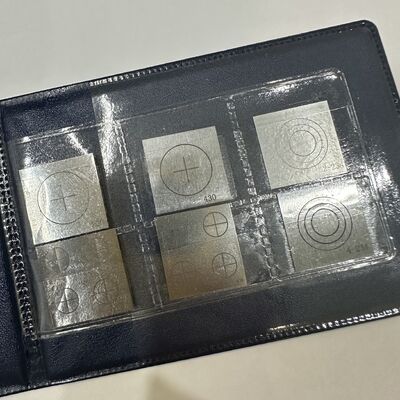

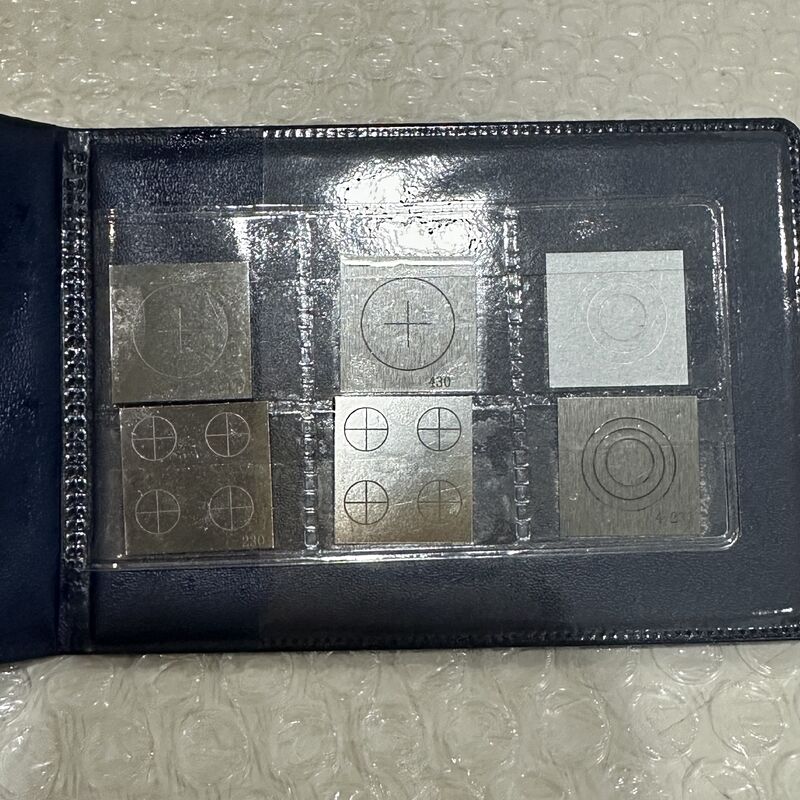

QQI Variable Depth Flaw Shim Quality Control Indicators for MPI Inspection
Standard: JB/T6065-2005,ASME-2007 PAGE Number V
Test piece of magnetic particle Type: CX-230
|
Inspection items |
The condition, method and demand of the test |
|
Color |
Metal surface presents bright silver, no rust. no scratch, no corrosion and so on |
|
Plainness |
Put the test piece on bare board, parallel completely. No wrinkle. No burts.the surface’s roughness RA is 0.8um |
|
The size of sheet iron and cutting groove |
The side length of test piece tested by milscale is 0.75in×0.75in. The average thickness of test piece CX-230 is 0.002in. The artificial defect symbol “o”and symbol“+”tested by precision microscope are both on the center of the test piece. The diameter of symbol “o”is 0.507in,symbor“+”is 0.25in. The thickness of test piece CX-230 is 0.002in. The groove depth is 0.0008in; the groove width is 0.007in. |
|
Quality |
The physics and chemistry test show the result that the metal is made from 1005 Steel Park electromagnetic pure iron plate. The analytic result of raw materials accords with the rule of GB6985, |
Test piece of magnetic particle Type: CX-430
Standard: JB/T6065-2005,ASME-2007 PAGE Number V
|
Inspection items |
The condition, method and demand of the test |
|
Color |
Metal surface presents bright silver, no rust. no scratch, no corrosion and so on |
|
Plainness |
Put the test piece on bare board, parallel completely. No wrinkle. No burts.the surface’s roughness RA is 0.8um |
|
The size of sheet iron and cutting groove |
The side length of test piece tested by milscale is 0.75in×0.75in.the average thickness of test piece CX-430 is 0.004in .The artificial defect symbol “o”and symbol“+”tested by precision microscope are both on the center of the test piece. The diameter of symbol four“o”is 0.507in,symbor“+”is 0.25in. The thickness of test piece CX-430 is 0.004in.the groove depth is 0.0012in,the groove width is 0.007in. |
|
Quality |
The physics and chemistry test show the result that the metal is made from 1005 Steel Park electromagnetic pure iron plate. The analytic result of raw materials accords with the rule of GB6985, |
Test piece of magnetic particle Type: 3C2-234
Standard: JB/T6065-2005,ASME-2007 PAGE Number V
|
Inspection items |
The condition, method and demand of the test |
|
Color |
Metal surface presents bright silver, no rust. no scratch, no corrosion and so on |
|
Plainness |
Put the test piece on bare board, parallel completely. No wrinkle. No burts.the surface’s roughness RA is 0.8um |
|
The size of sheet iron and cutting groove |
The side length of test piece tested by milscale is 0.75in×0.75in.the average thickness of test piece 3C2-234 is 0.002in .The artificial defect three“o”tested by precision microscope are all on the center of the test piece. The diameter of big “o”is 0.507 in, middle “o”is 0.383in ,small“o”is 0.258in, Test piece 3C2-234,big“o”, thickness:0.002in , groove depth:0.0004in,groove width:0.007in, middle“o” ,thickness:0.002in,groovc depth: 0.0006in,groove width:0.007in,small“o”, thickness:0.002in,groove depth:0.0008in, groove width:0.007in. |
|
Quality |
The physics and chemistry test show the result that the metal is made from 1005 Steel Park electromagnetic pure iron plate. The analytic result of raw materials accords with the rule of GB6985, |
