تفاصيل المنتج:
|
| نطاق القياس (مم): | 2.5 ～ 10000 | خطأ خطي عمودي: | ≥3% |
|---|---|---|---|
| خطأ خطي أفقي: | ≤0.1 ٪ | نطاق التردد (ميجاهرتز): | 0.5 20 |
| كسب (ديسيبل): | 0 ～ 110 | سرعة المواد (م / ث): | 1000 ～ 9999 |
| إبراز: | industrial ultrasonic flaw detector,ultrasonic flaw detector with calibration,NDT equipment with video recording,ultrasonic flaw detector with calibration,NDT equipment with video recording |
||

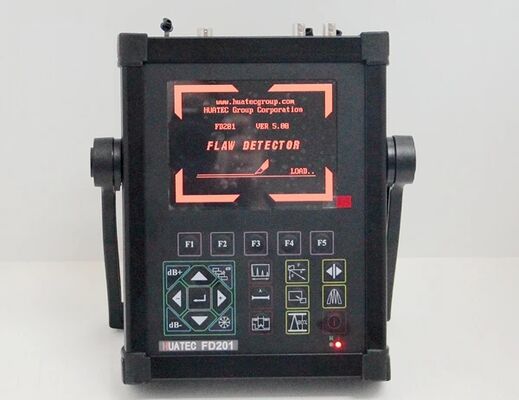

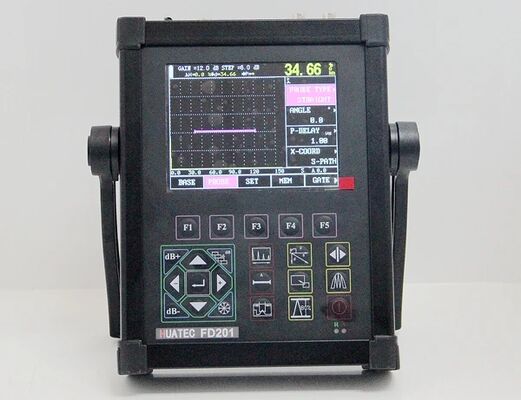

FD201 Industrial Ultrasonic Flaw Detector with Automated Calibration & Video Recording
Production Info. :
·Automated calibration Automated gain
·Automated make video of test process and play
·DAC AVG & B scan, AWS function, 6dB DAC
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel
| Main Technical Index: |
|
Title
|
Parameter
|
Title
|
Parameter
|
|
Measuring Range(mm)
|
2.5 ～ 10000
|
Measurement Mode
|
Single, Dual, Thru
|
|
Vertical Linearity Error
|
≤3%
|
Reject
|
0~80%
|
|
Horizontal Linearity Error
|
≤0.1%
|
Pulse Displacement(μs)
|
-20 ～ +3400
|
|
Sensitivity Leavings
|
60dB
|
Zero(μs)
|
0.0 ～ 99.99
|
|
Pulse Displacement
|
32dB
|
Port Type
|
BNC
|
|
Resolving Power
|
≥40
|
Operating Temperature (℃)
|
-20～50
|
|
Frequency Range(MHz)
|
0.5 ～ 20
|
H×W×D(mm)
|
240×180×50
|
|
Gain(dB)
|
0 ～ 110
|
Weight(kg)
|
1.8
|
|
Material Velocity(m/s)
|
1000 ～ 9999
|
Features :
· Automated calibration of transducer Zero Offset and/or Velocity ；
· Automated gain, Peak Hold and Peak Memory；
· Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф)；
· Automated switch three staff gauge ((Depth d, level p, distance s)；
· 100 independence setup, any criterion can be input freely, we can work in the scene without test block；
· Big memory of 300 A graph and 30000 thickness value.
· B scan；
· RS232 port/ USB, communication with pc is easy；
· The embeded software can be online updated；
· Li battery, continue working time up to 10 hours;
· Other assistant function;
· Display freeze;
· Automated echo degree;
· Angles and K-value;
· Lock and unlock function of system parameters;
· Dormancy and screen savers;
· Electronic clock calendar ;
· Two gates setting and alarm indication;
· High-speed capture and very low noise;
· DAC, AVG, B Scan ; Solid metal housing (IP65);
· Automated make video of test process and play;
· Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
Standard Delivery:
Digital Ultrasonic Flaw Detector Main unit
2.5MHZ-ф20 straight probe
4MHZ-8x9mm, 60degree angle probe
4A/9Vpower adapter
Probe connection cable (BNC to Lemo 00)
Probe connection cable (BNC to Lemo 01)
Instruction manual
Carrying case
