تفاصيل المنتج:
|
| نطاق القياس: | المعيار 0 ~ 1250μm (Probe F10 Max 10000μm ، N3 0 ~ 3000μm ، F3 0 ~ 3000μm) | دقة: | 0.1 ميكرومتر / 1 ميكرومتر |
|---|---|---|---|
| دقة: | ±2%H+1μm ملاحظة: H هي قراءة السُمك | عرض: | شاشة LCD مقاس 128x64 مع إضاءة خلفية |
| ذاكرة: | 5 ملفات × 99 قيمة | درجة حرارة العمل: | عملية درجة الحرارة. : -10 درجة مئوية ~ 50 درجة مئوية درجة الحرارة. : -30 درجة مئوية-70 درجة مئوية |
| إبراز: | portable paint thickness gauge with backlight,coating thickness gauge with data storage,paint thickness meter for non-destructive testing,coating thickness gauge with data storage,paint thickness meter for non-destructive testing |
||

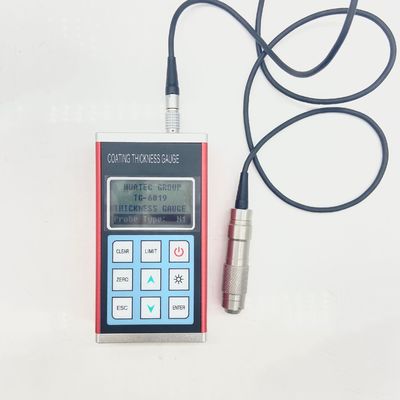

TG-6019 Portable Paint Coating Thickness Gauge with Data Storage & Backlight
MAIN FEATURE
*this model is capable to measure thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel), also can measure thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, plastic) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel);
*Various probes optional, probe auto matching;
*Durable ruby probe, more wear and precise;
*Full metal shell design, sturdy, portable, high reliability;
*Alarm function when overrun the settable limiting range;
*Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy;
*Large storage, easy to delete single or multiple saved values;
*PC software optional, convenient the data transmission, analysis, printing etc.
TECHNICAL DATA

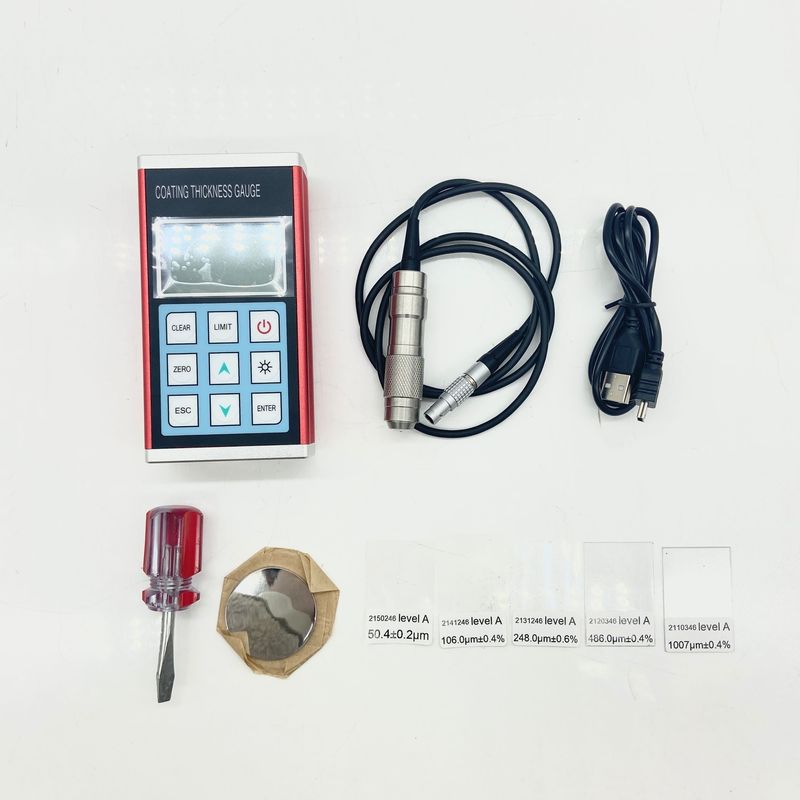

STANDARD DELIVERY
| ITEM | QTY |
| Main Unit | 1 PC |
| F1 or N1 Probe Optional | 1 PC |
| Standard Calibration Piece | 1 SET |
| Fe or NFe Substrate | 1 PC |
| User Manual | 1 PC |
| Instrument Case | 1 PC |
| Warranty | 2 Years |
