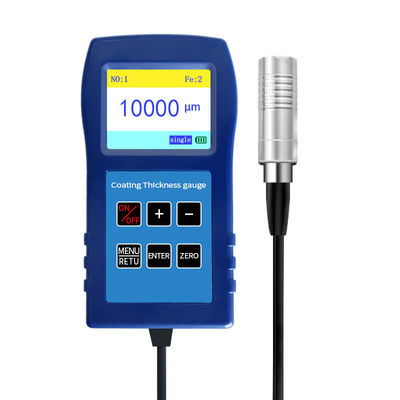

TG-6007 Portable Digital Fireproof Coating Thickness Gauge with Data Storage and Alarm Function

TG-6007 Portable Digital Fireproof Coating Thickness Gauge with Data Storage and Alarm Function

General introduction

TG-6007 coating thickness gauge is a large-scale coating thickness gauge, mainly used to measure the thickness of magnetic metal material surface coating coating object professional non-destructive testing instrument. It adopts the principle of magnetic thickness measurement, which can quickly and non-destructively measure the thickness of non-magnetic coatings on magnetic metal substrates (such as steel, iron) (galvanized, chromium, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coatings, anti-corrosion and fireproof coatings, etc.), which is very suitable for measuring ultra-thick anti-corrosion coatings on various large workpieces, with a range of up to 13MM, application field: widely used in coating industry, manufacturing, petroleum, chemical industry, shipbuilding, fire engineering, construction industry, commodity inspection and other testing fields

Technical parameters

Instrument features

Simple operation, fast test speed, good sensitivity and high measurement accuracy

Using alloy probe, hard and durable, accurate

There are two measurement methods: continuous measurement and single measurement

There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), and number of measurements (No).

Mass storage, can be divided into 10 groups of storage, 200 in each group, a total of 2000 data can be stored

Store data view delete function

Three calibration methods: zero calibration, two-point calibration, and multi-point calibration

Upper and lower limit alarm function (can be set in single measurement mode)

The operation process is marked by a beep (in single measurement mode).

Automatic identification of ferrous and non-ferrous substrates

Metric conversion μm/Mil

Sunshine mode (used in strong light)

English bilingual version

2.3-Inch large color screen with large font size display

Manual/automatic shutdown function

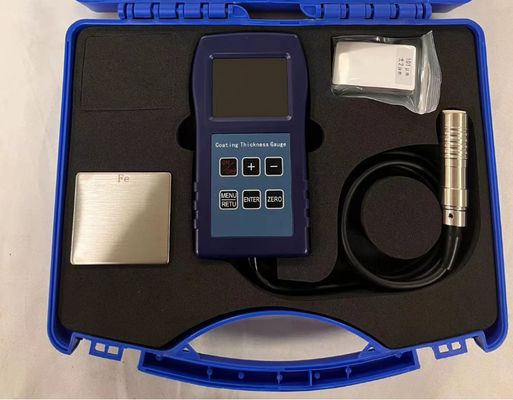

Standard configuration

1 Host TG-6007 √

2 Standard tablets √

3 Iron matrix √

4 Instruction manual √

5 Certificate of conformity √

6 Cleaning cloth √
