تفاصيل المنتج:
|
| نطاق القياس: | 0-6000 ميكرومتر | استخدام البيئة: | درجة الحرارة: 0 ℃ -60 ℃ ، الرطوبة: 20 ٪ RH - 90 ٪ RH ، استخدم في بيئة حقل مغناطيسي قوي |
|---|---|---|---|
| أنحف الركيزة: | 0.4 ملم | دقة القياس: | ± 3 ٪ H + 2μm |
| دقة: | 0.1μm /1 μm (0.1μm أقل من 100μm ، 1μm أعلى من 100μm) | الحد الأدنى لمنطقة القاعدة: | 16.16mm |
| الحد الأدنى للانحناء: | محدب 5mm ؛ مقعر 25 ملم | ||
| إبراز: | large range coating thickness gauge,anticorrosive magnetic thickness gauge,non-destructive testing equipment with warranty,anticorrosive magnetic thickness gauge,non-destructive testing equipment with warranty |
||

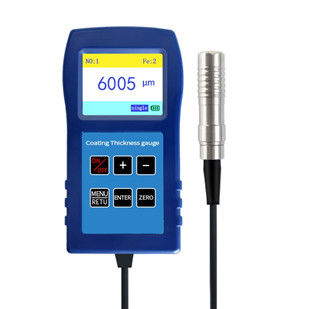

TG-6006 Large Range Anticorrosive Coating Thickness Gauge Magnetic Principle
General introduction
TG-6006 big range anticorrosive coating thickness gauge is a professional non-destructive testing instrument for measuring the thickness of coated objects on the surface of magnetic metal materials. Using magnetic thickness measurement method, it can non-destructively measure the thickness of non-magnetic coatings (galvanized, chromium, impregnated, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coatings, anti-corrosion and fireproof coatings, etc.) on magnetic metal substrates (such as steel and iron). The instrument has a precise and firm structure, good repeatability, excellent performance, simple use and convenient portability.
Technical parameters
Application field
Widely used in coating industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields.
Instrument features
Simple operation, fast test speed, good sensitivity and high measurement accuracy
Using alloy probe, hard and durable, accurate
There are two measurement methods: continuous measurement and single measurement
There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), and number of measurements (No).
Mass storage, can be divided into 10 groups of storage, 200 in each group, a total of 2000 data can be stored
Store data view delete function
Three calibration methods: zero calibration, two-point calibration, and multi-point calibration
Upper and lower limit alarm function (can be set in single measurement mode)
The operation process is marked by a beep (in single measurement mode).
Automatic identification of ferrous and non-ferrous substrates
Metric conversion μm/Mil
Sunshine mode (used in strong light)
English bilingual version
2.3-Inch large color screen with large font size display
Manual/automatic shutdown function
Standard configuration
1 Host TG-6006 √
2 Standard tablets √
3 Iron matrix √
4 Instruction manual √
5 Certificate of conformity √
6 Cleaning cloth √
