تفاصيل المنتج:
|
| دقة: | 0.1 أم （0 ~ 99.9 أم） 1um 100 ~ 1500 أم） | فترة القياس: | 3 مرات في الثانية |
|---|---|---|---|
| وضع المعايرة: | المعايرة الصفرية والنقطة الواحدة والنقطة المزدوجة والمعايرة الأساسية | عرض: | الإنجليزية / الصينية قابلة للتحديد ، شاشة FSTN LCD مع إضاءة خلفية |
| تخزين: | 500 قياس، بما في ذلك الوقت ونوع المسبار وما إلى ذلك. | درجة حرارة: | استخدام: -10 ~ 50 °C، تخزين: -30 ~ 60 °C |
| إبراز: | digital coating thickness gauge with temperature compensation,paint inspection thickness gauge anti-interference,plating thickness meter for non-destructive testing,paint inspection thickness gauge anti-interference,plating thickness meter for non-destructive testing |
||

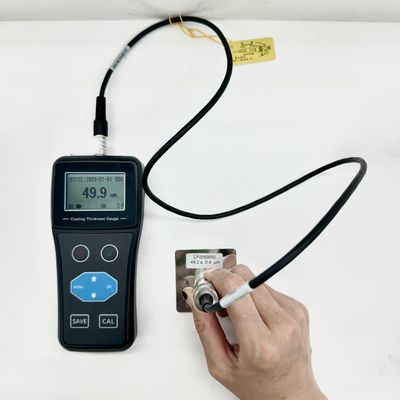

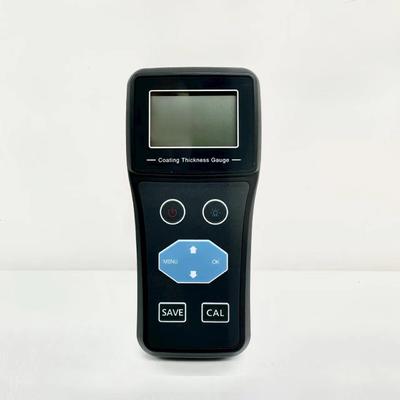

TG-6100 Digital Coating Thickness Gauge with Temperature Compensation & Anti-Interference for Paint & Plating Inspection,
TG-6100 is a portable coating thickness gauge which is designed for non-destructive, fast and precise coating thickness measurement. The principal applications lie in the field of corrosion protection. It is ideal for manufactures and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering.
Technical Parameters:
|
Probe Type |
F (Magnetic) |
N (Non-magnetic) |
|
Usage |
Non-magnetic coating on magnetic metal substrate |
Non-conductive coating on non-magnetic metal substrate |
|
Measure Range |
0 ~ 1500 um |
0 ~ 1500 um 0 ~ 40 um, for Chromium on Copper |
|
Min. Radius of Curvature |
Bulge 1.5 mm |
Bulge 3 mm |
|
Min. Radius of Area |
Φ7 mm |
Φ5 mm |
|
Critical Thickness of Plate |
0.5 mm |
0.3 mm |
|
Accuracy |
Zero / One-Point Calibration |
±(2%H+1) um |
|
Two-Point Calibration |
±[(1~2)%H+1] um |
|
|
Basic Calibration |
±(1%H+1) um |
|
|
Resolution |
0.1 um(0 ~ 99.9 um),1um(100 ~ 1500 um) |
|
|
Measuring Period |
3 times per second |
|
|
Calibration Mode |
Zero, One-Point, Two-Point and Basic Calibration |
|
|
Measuring Mode |
Single point, scan mode, differential mode, alarm mode |
|
|
Display |
English / Chinese selectable, FSTN LCD Display with backlight |
|
|
Display Content |
Coating Thickness Value, Time, Stability, Battery, Measuring Mode, etc. |
|
|
Storage |
500 measurements, including time, probe type, etc. |
|
|
Communication |
Mini-USB interface, virtual serial port protocol, support online measurement |
|
|
|
Optional portable thermal printers |
|
|
Power Supply |
3 * AAA alkaline batteries for 100 hours usage (close backlight) |
|
|
Power off |
Timeout power off, and low battery power off |
|
|
Temperature |
Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C |
|
|
Size |
150mm * 70mm * 30mm |
|
|
Material |
ABS and PC alloy |
|
|
Weight |
180g |
|
Features:
High precision sample chip and dedicated temperature compensation model used for precision measurement
Efficient filtering algorithm used for Anti-electromagnetic interference
Probe can be re-matched with the machine after wear
Mini-USB interface for communication
Support Online measurement
Host Software upgradable Main
Functions:
Single Point Measurement, Scan, Differential and Alarm Mode support
Three calibration mode used for system error auto correction
Thickness and time information can be stored completely
Stability indicator for measuring status monitoring
Battery indicator for battery quantity monitoring
