تفاصيل المنتج:
|
| نطاق الطاقة من الإشعاع المؤين الفوتون المسجل: | 10 كيلو فولت ～ 7 ميجا فولت | كفاءة الكشف: | Sr-90 (546 كيلو فولت، 2.3 ميجا فولت βmax) حوالي 75%؛ Am-241 (5.5 ميجا فولت α) حوالي 36% |
|---|---|---|---|
| خطأ نسبي، وليس أكثر: | ± 15٪ | الكاشف: | عداد جيجر على شكل نافذة ميكا، القطر الفعال: 45 مم |
| نطاق القياس: | معدل العد: 0～500000 CPM، 0～8000 CPS، معدل الجرعة: 0.01μSv/h～1000μSv/h | ||
| إبراز: | GM counter radiation detector,nuclear security radiation meter,environmental radiation dose rate detector |
||

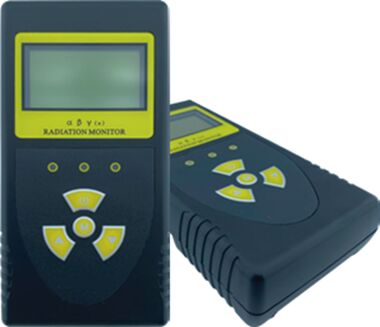

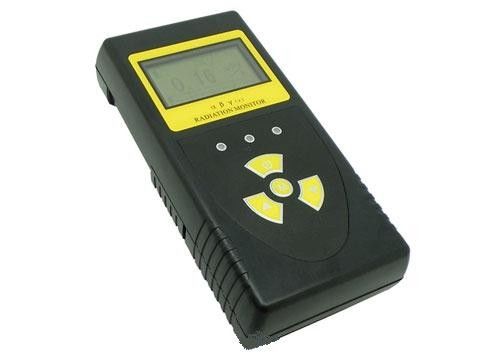

FJ-6108EN GM Counter Radiation Dose Rate Meter Nuclear Security Environmental Radiation Detector
The instrument features a high-speed embedded microprocessor for data processing, a large dot-matrix LCD screen for clear readings and easy operation. It uses an imported large-area high-efficiency disc-shaped GM (Geiger-Müller) detector, capable of detecting surface contamination from α and β radiation and monitoring X and γ radiation dose rates.
Key technical specifications
|
Measurement range |
Count rate:0～500000 CPM ,0～8000 CPS；Dose rate:0.01μSv/h～1000μSv/h |
|
Detector |
Mica window pie-shaped Geiger counter, effective diameter: 45mm |
|
Energy range of registered photon-ionizing radiation |
10keV～7MeV |
|
Detection efficiency |
Sr-90(546keV,2.3MeV βmax) about 75%；Am-241(5.5MeV α) about 36% |
|
Relative error, not more |
±15% |
|
Power supply |
2 AA batteries or rechargeable batteries |
|
Power consumption |
The current of the whole machine ≤8mA |
|
Operating temperature range |
－40℃～50℃ |
|
Relative humidity |
≤90%(40℃) |
|
Dimensions and weight of the instrument |
(175×85×38) mm ,0.5kg |
|
Dimensions and weight of the portable box |
(300×215×90) mm ,0.75kg |
Branches of Use:
Surface contamination radiation detection
Nuclear medicine, radiochemistry, molecular biology
Suspicious object detection
Counter-terrorism and nuclear security
Nuclear material transport and storage
Environmental pollution surveys
Radioactivity measurement of metals, building materials, and stones
Customs inspection, ports, etc.
Thickness measurement, material level measurement, flaw detection, irradiation processing, etc.
Features:
Efficient GM detector, capable of measuring β and α radiation
Pulse beep frequency indicates radioactive intensity and can be used for source detection.
Dose rate alarm thresholds can be set
Ultra-low power design
Dot matrix LCD display with high-brightness backlight
Anti-misoperation flat touch keys
Display unit μGy/h,μSv/h,Bq/cm2,CPS,nSv
Two level alarm threshold
Indication of battery level
Record saving and viewing
Optional Bluetooth, USB, or Wi-Fi for data export
