تفاصيل المنتج:
|
| درجة حرارة التشغيل: | -10 درجة مئوية ~ 50 درجة مئوية | ||
|---|---|---|---|

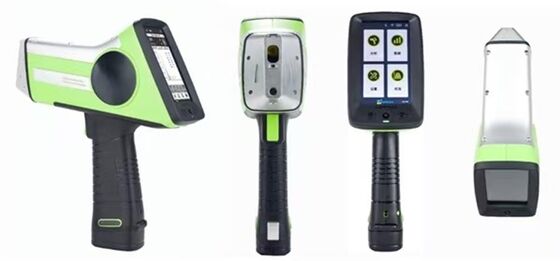

| إبراز: | handheld XRF spectrometer for preventive maintenance,non destructive testing XRF analyzer,HXRF-145AT X-ray fluorescence spectrometer |
||
| Usage Environment | Temperature: -10°C to 50°C; Humidity: 0-95% (20°C); Altitude: less than 5000m |
|---|---|
| Size and Weight | Size: 275mm × 245mm × 82mm; Weight (including battery): 1.5Kg |
| Analysis Object | Solid, powder, liquid |
| Analysis Element Range | From Mg to U, Detection content range: 0.1ppm to 99.9% (varies by object type) |
| Detector | Peltier effect cooled Fast-SDD detector, Resolution ≤126eV |
| X-ray Source | Ag targets, tube voltage: 6-50kV, tube current: 0-200μA |
| Microcomputer System | Industrial grade 4-core 1.8GHz processor; 2GB RAM, 40GB data storage (approx. 400,000 spectral data); Built-in 4.5 inch high-definition backlight touch color display |
| Operating System | Industrial grade Linux |
| USB Interface | Two USB ports for U disk and PC connection |
| Wireless Interface | Built-in WiFi and Bluetooth for NET, PC, Android phone, or Bluetooth printer connectivity |
| Remote Control | Equipped with WinGUI software and Android APP for computer/phone data synchronization and sharing |
| Sample Camera | Microcamera for sample photography |
| Collimation, Filtering & Calibration | 2.6mm collimator, 8-channel filter, built-in calibration plate with program controlled automatic calibration |
| Pressure Compensation | Built-in barometer with automatic pressure compensation correction |
| Analysis Software | NDT element analysis software with multiple analysis modes, built-in alloy grade library (500+ types), customizable reporting |
| Operating Language | English, customizable for multiple languages |
| Radiation Safety | Password protection, sample recognition sensor, multi-angle X-ray status warning, work interface radiation <0.15 μSv/h |
| Battery | 6600mAh lithium battery with 8-hour runtime, hot swapping capability, synchronized battery level display |
| Transportation Safety | Complies with ISTA 3A packaging standards and UN38.3 |
| Environmental Adaptability | Complies with GB/T2423.1, GB/T2423.2, IP54, CE standards |
