تفاصيل المنتج:
|
| قرار الكاشف: | ≥126eV | نطاق العنصر: | ملغ إلى يو |
|---|---|---|---|
| جهد الأشعة السينية: | 6 ~ 50 كيلو فولت | تيار الأشعة السينية: | 0 ~ 200μA |
| درجة حرارة التشغيل: | -10 درجة مئوية ~ 50 درجة مئوية | وزن: | 1.5 كجم |

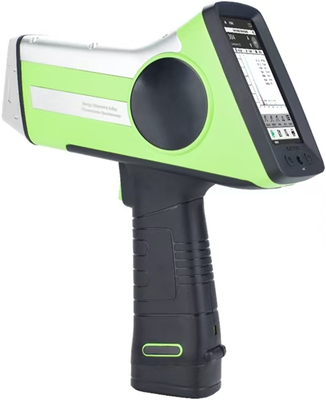

Peltier Effect Cooled Fast-Super SDD Detector Handheld X-ray Fluorescence Element Analyzer Spectrometer
1.1 Manufacturing industry
1.2 Mining
1.3 Recycling of renewable resources
1.4 Environment protection
| Usage environment | Temperature: -10°C~50°C; Humidity: 0-95% (20°C); Altitude: less than 5000m |
|---|---|
| Size and weight | Size:275mm×245mm ×82mm; Weight(Including battery):1.5Kg |
| Analysis object | Solid, powder, liquid |
| Analysis Element Range | From Mg to U,Detection content range:0.1ppm to 99.9% ,Depending on the type of object being tested, there are differences |
| Detector | Peltier effect cooled Fast-SDD detector,Resolution≤126eV |
| X-ray source | Ag targets, tube voltage: 6~50kV, tube current :0~200μA |
| Microcomputer system | Industrial grade 4-core 1.8GHz processor; 2GB RAM, 40GB data storage, capable of storing approximately 400000 spectral data; Built-in 4.5 inch high-definition backlight touch integrated color display screen |
| Operating system | Industrial grade Linux |
| USB interface | Two USB ports, capable of connecting to U disk and PC |
| Wireless interface | Built in WiFi and BT, can connect to NET or PC, Android phone, or Bluetooth printer |
| Remote control | Equipped with WinGUI software and Android APP, it can be connected to a computer or phone for data synchronization and sharing with instruments |
| Sample camera | Microcamera,Sample photos can be taken |
| Collimation, filtering, and calibration | 2.6mm collimator, capable of detecting both large and small samples, 8-channel filter with a wider detection range, built-in calibration plate, program controlled automatic calibration, no need for external standard plates |
| Pressure compensation | Built-in barometer and automatic pressure compensation correction |
| Analysis software | NDT element analysis software can be configured with multiple analysis modes according to user needs: alloy analysis, ore analysis, catalyst detection, precious metal analysis, etc. Users can use their own samples to establish their own calibration curves. The software has a built-in alloy grade library of more than 500 types, and users can customize report content. The test results can be automatically displayed as ppm or% |
| Operating language | English, customizable for multiple languages |
| Radiation Safety | Equipped with password protection function,The head is equipped with a sensor that can automatically identify the sample, and X-ray excitation is automatically prohibited during aerial testing; Multi angle X-ray status warning; Work interface X-ray radiation <0.15 Μ Sv/h |
| Battery | 6600mAh lithium battery with charged capacity display; The working time of a single battery is about 8 hours, hot swapping function, allowing for direct battery replacement without shutting down the machine; During operation, the battery level can be displayed synchronously on the handle and screen |
| Transportation Safety | Comply with ISTA 3A packaging and transportation drop, vibration, and impact test standards,UN38.3 |
| Environmental adaptability | Comply with GB/T2423.1 and GB/T2423.2,IP54,CE |
1 packaging:Instrument specific protective box, foam buffer substrate
2 Product accessories:
| Standard Accessories | ||
|---|---|---|
| Accessories | Description | Quantity |
| lithium battery | 7.2V,6600mAh,with electric charge display,Hot swappable | 1 |
| Charging adapter | 14V/4A | 1 |
| Charger | Can charge 2 batteries simultaneously | 1 |
| USB cable | Mini USB 1.5m | 1 |
| USB flash drive | 32GB | 1 |
| Protective film | ElemtrackAtom series product specific | 10 |
| Wristband | 1 | |
| Optional Accessories | ||
| Folding bracket | Aluminum alloy, foldable | 1 |
| Radiation protection cover | Used in conjunction with the bracket | 1 |
| Sample cup | Used for powder or liquid samples | 1 |
