تفاصيل المنتج:
|
| تيار متردد: | 0-1500A | مزود الطاقة: | 220 فولت (نظام ثلاثي الأسلاك ثنائي الطور) ±10%، 50 هرتز، التيار اللحظي حوالي 100 أمبير؛ |
|---|---|---|---|
| طريقة المغنطة: | مغنطة التيار المتردد، مغنطة التيار المستمر (HWDC/FWDV) | كابل الإخراج: | عدد 2 كابل مرن نحاسي (120 ملم2) بطول 3 أمتار |
| استقرار البقاء: | ± ± 5% | اسم المنتج: | كاشف عيوب الجسيمات المغناطيسية المتحركة |
| إبراز: | HCDX-1500 magnetic particle flaw detector,mobile AC/HWDC flaw detector,movable flaw detector with demagnetization |
||

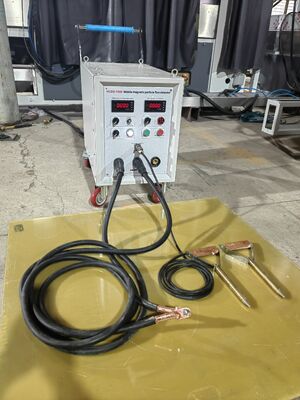

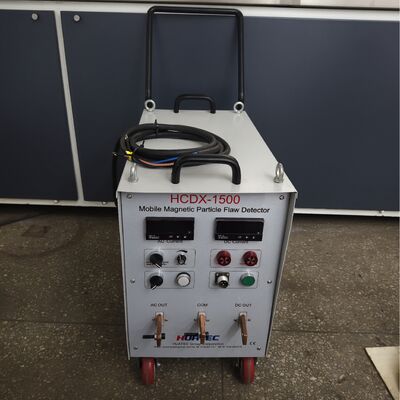

HCDX-1500 AC/HWDC Mobile/Movable Magnetic Particle Flaw Detector with Automatic Demagnetization
The HCDX-1500 mobile magnetic particle flaw detector can magnetize parts in AC (or half wave DC magnetization HWDC). And with automatic demagnetization function, no additional demagnetization device is required.
8-bit MCU is adopted as the controller by this magnetic particles flaw detector, and the continuous regulation of magnetizing current can be realized through the precise collection of the AC zero voltage crossing signal and the signal of current regulation. It has the function of maximum current limit. With the function of phase controlled, the detector is suitable for both continuous technique and residual technique.
The current value is displayed on the analog ammeter or digital ammeter. The prod sets and trigger button are for operating in the narrow space.
The output current is reduced from the initial value to zero automatically when demagnetizing. Non-contact switch is adopted for the equipment.
This detector can be connected to the prod sets (handheld electrode sets) or spiral cable (flexible coil). Also there are some coils or electrodes designed for this equipment to become a simple inspection machine tool as option.
Technical parameters:
| AC magnetization current |
AC 0~1500A (effective value) continuously adjustable, short-time intermittent power, with power off phase control; HWDC: 0~1500A (twice the average) continuously adjustable, short-time intermittent power; |
| Automatic demagnetizing current | AC/HWDC 1500A~0 continuously adjustable, demagnetization time is shortened with the decrease of current |
| Output cable | 2 copper-core flexible cables (120mm2) of 3 meters |
| Power supply | 220V (two-phase three-wire system) ±10%, 50Hz, instantaneous current is about 100A |
| Dimensions | 900(L)× 450(W)×950(h) mm; (not include the handle |
| Remanence stability | ≤±5% |
| Temporary load rate | ≤30% |
| Input voltage | 380V 50Hz |
| Demagnetization time | < 5s |
| Weight | about 120kg |
Main functions:
Detection methods: support rod method, winding method, coil method
Magnetization method: AC magnetization, DC magnetization (HWDC), pulse magnetization
Demagnetization method: AC demagnetization using far away method demagnetization (attenuation method), AC demagnetization using ultra-low frequency demagnetization
Standard configuration:
Mobile host 1pc
Support rod probe 1 set
robe cable 1pc
Foot switch 1pc
Optional accessories
Fixed coil
Wound cable
